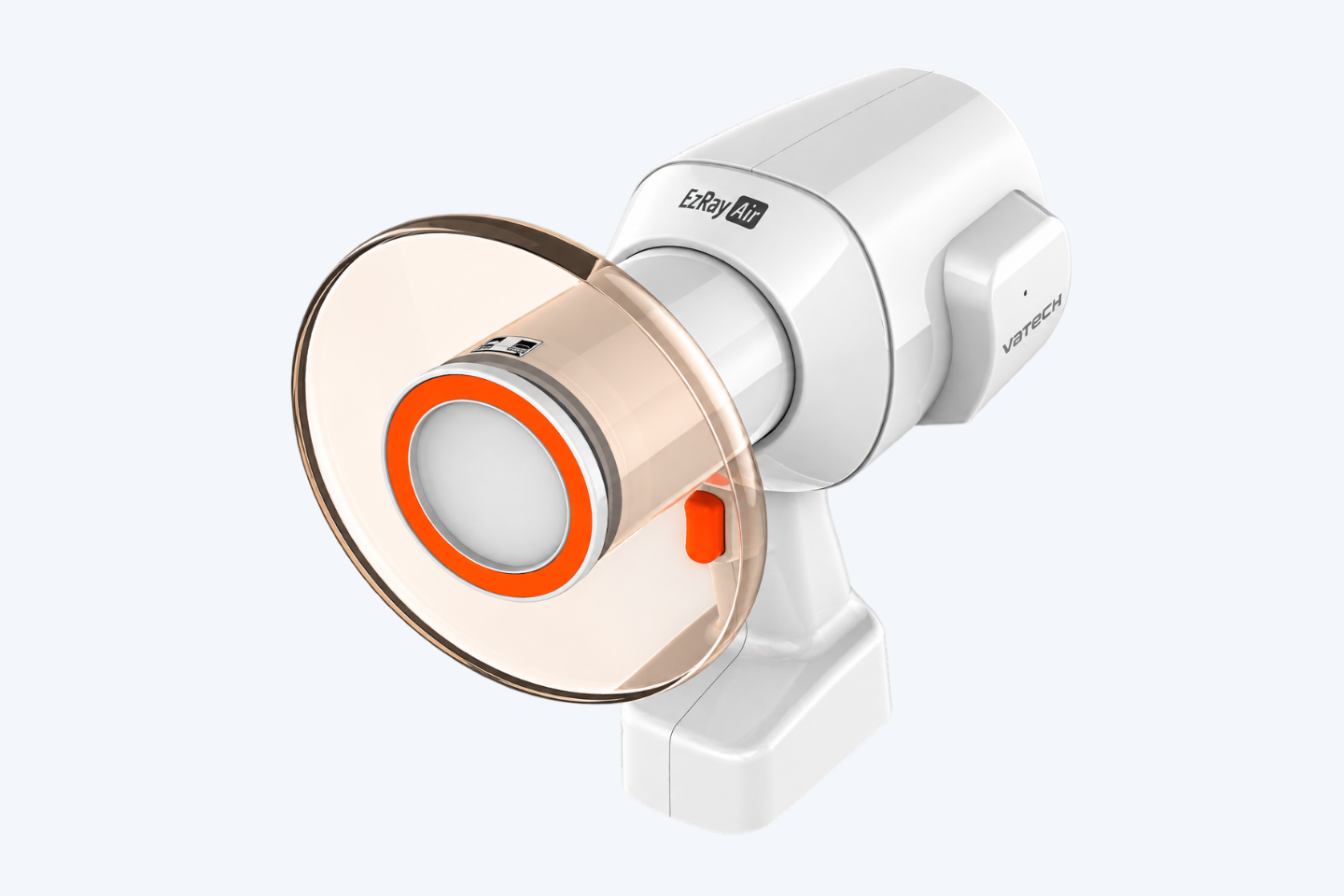

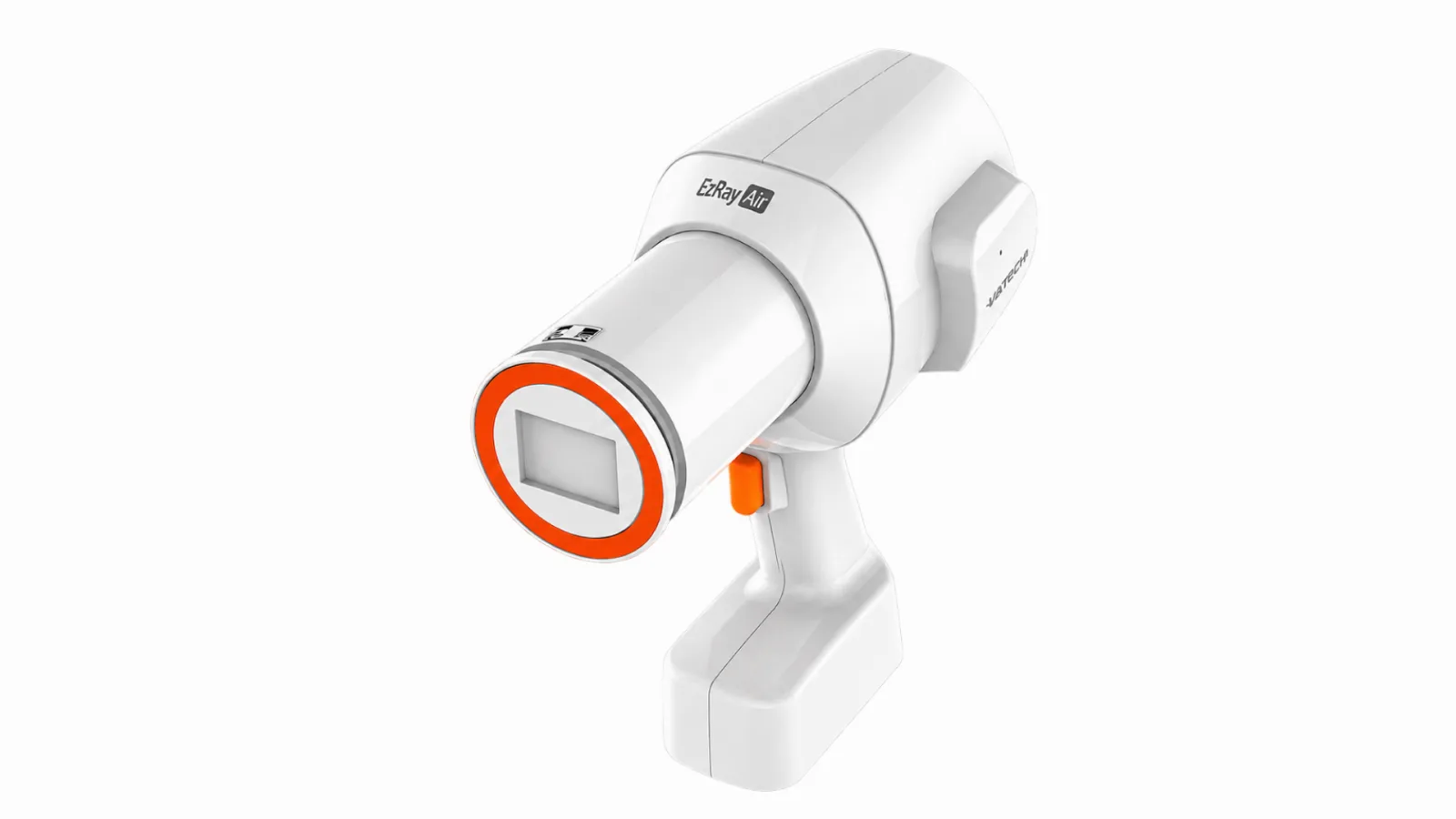

EzRay Air Plus
The world's safest X-ray unit is now more powerful

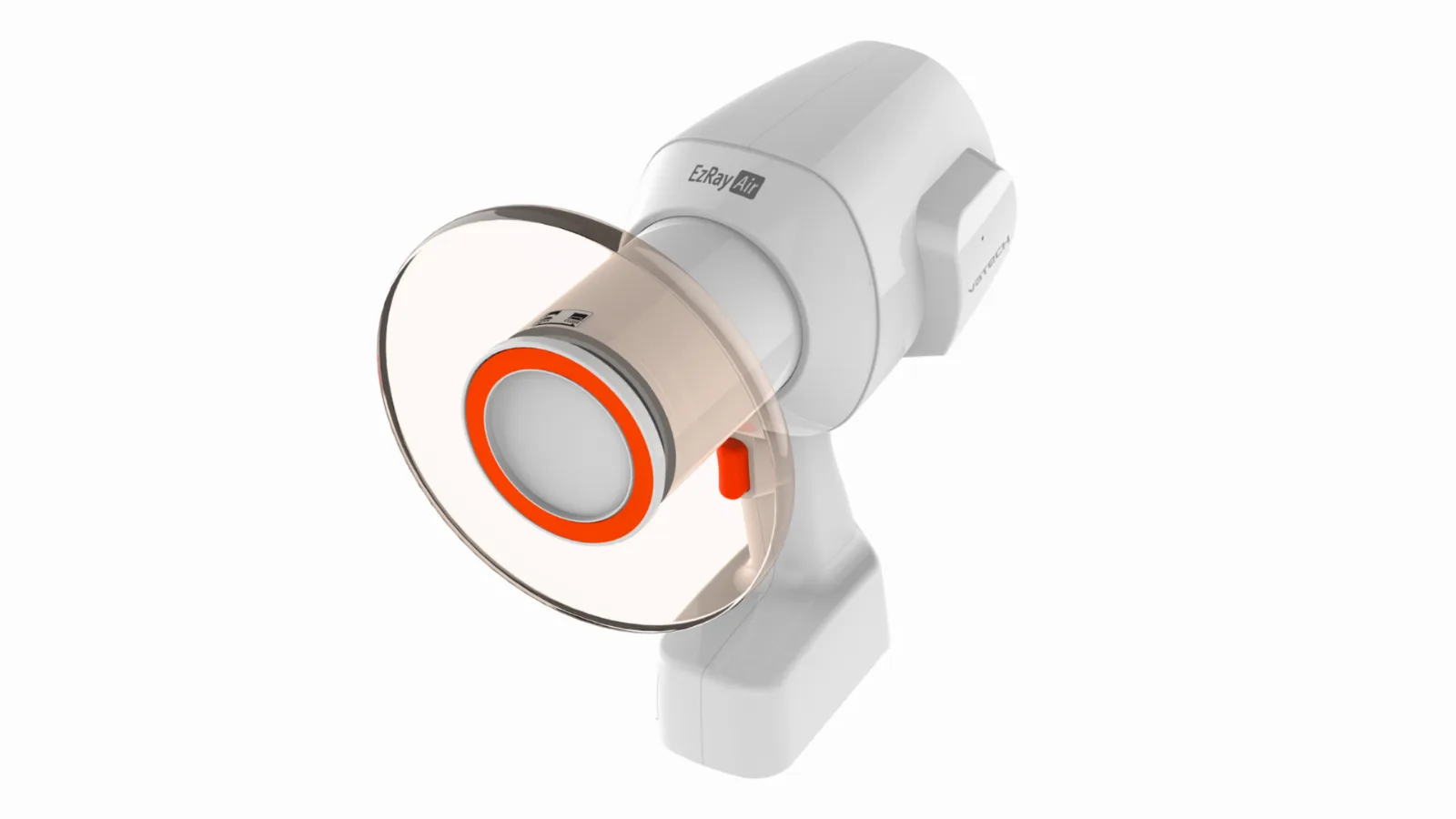

A portable, gun-type dental X-ray system built with Carbon Nano Technology for an ultra-light 1.8 kg body, delivering stable, easy-to-use imaging that maximises clarity and optimises workflow.
Interested in the EzRay Air Plus?
Talk to us about pricing, EMI options and installation — or have it demonstrated in your own clinic.
Take a closer look.
-

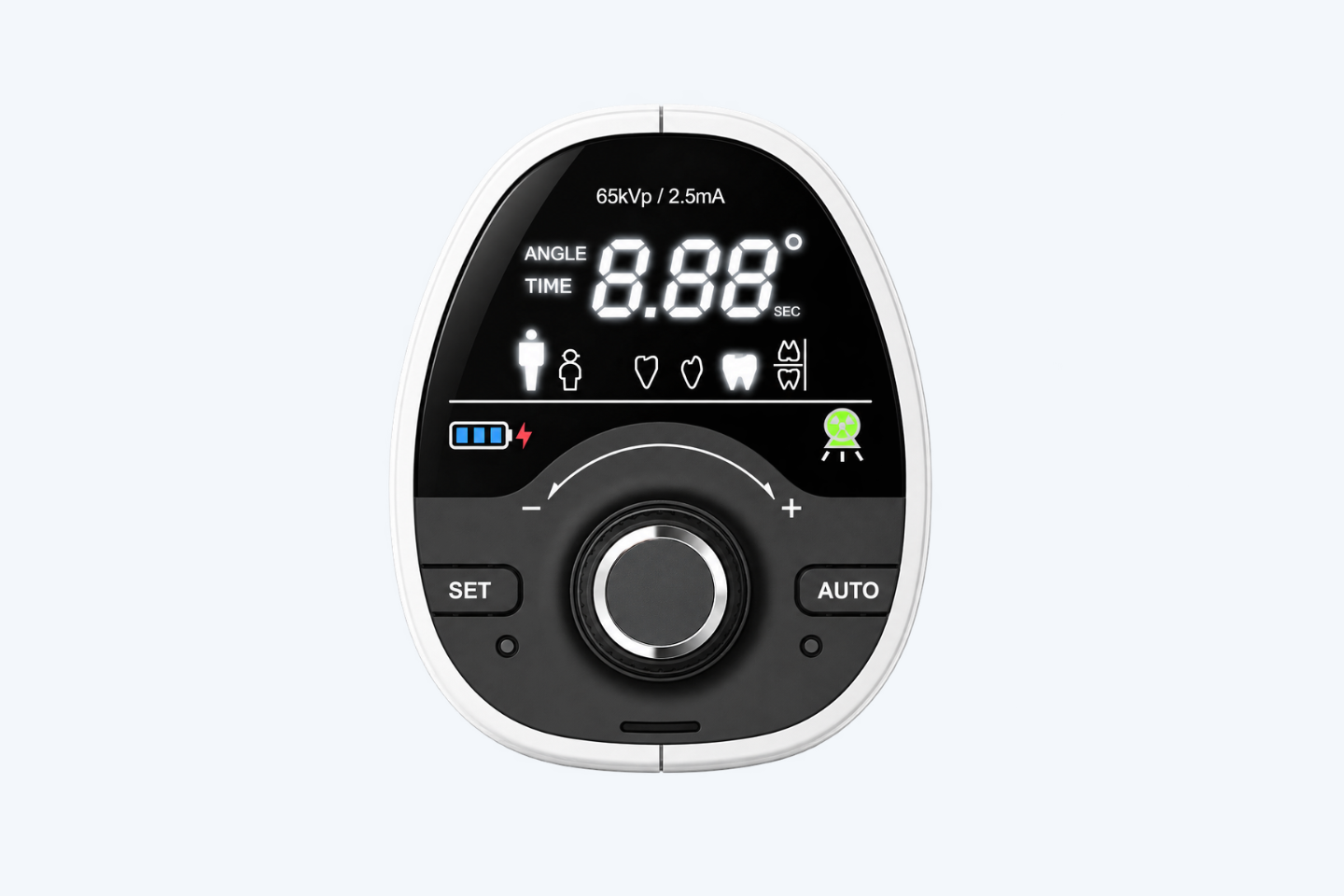

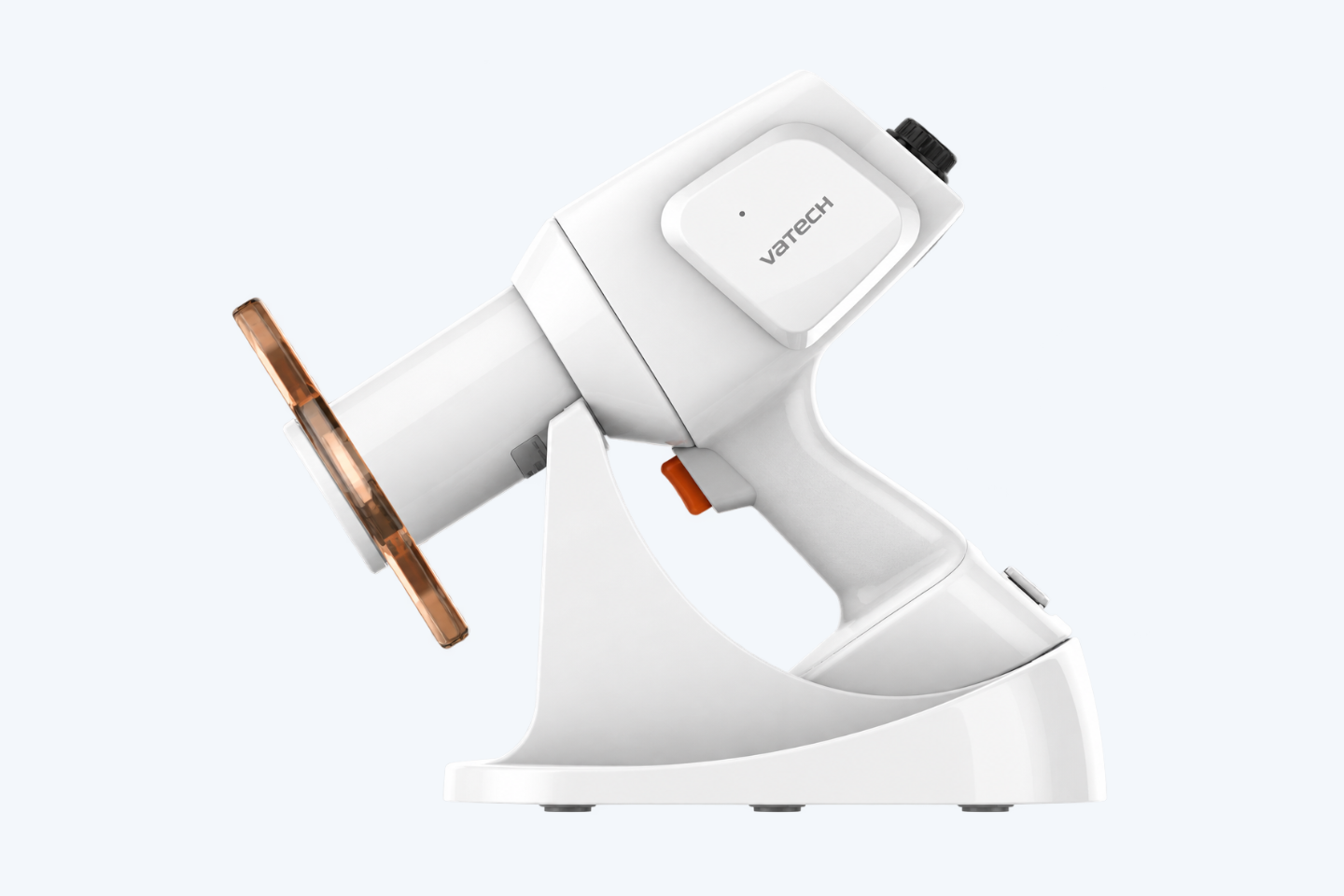

Weight Innovation. The EzRay Air Plus harnesses the world's first dental application of Carbon Nano Technology to deliver a remarkably lightweight portable X-ray device. Designed for easy handling and stable positioning, it lets clinicians capture optimal image quality on every intra-oral X-ray. Effortless in the hand, it keeps your focus on the patient rather than the equipment.
-

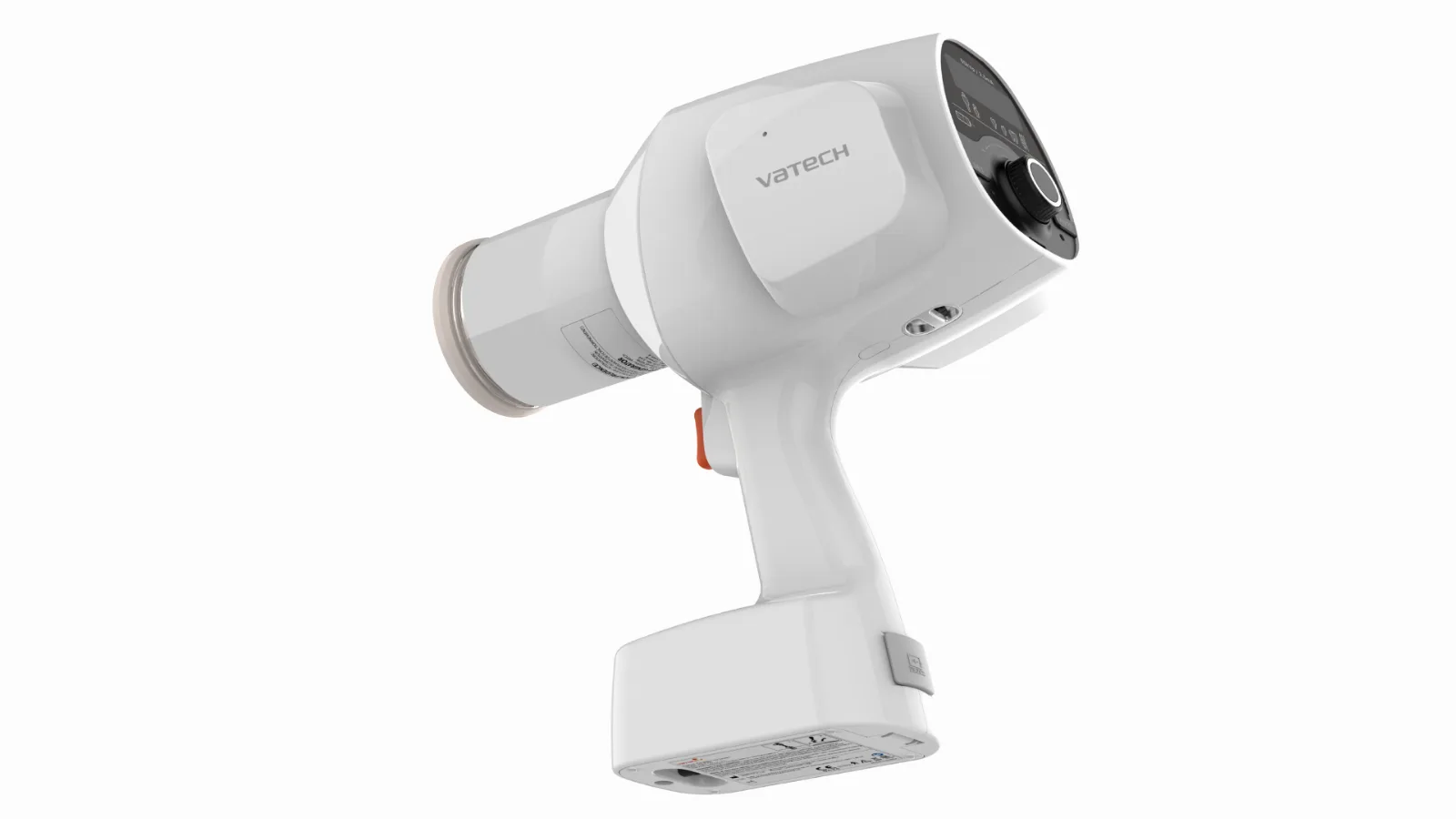

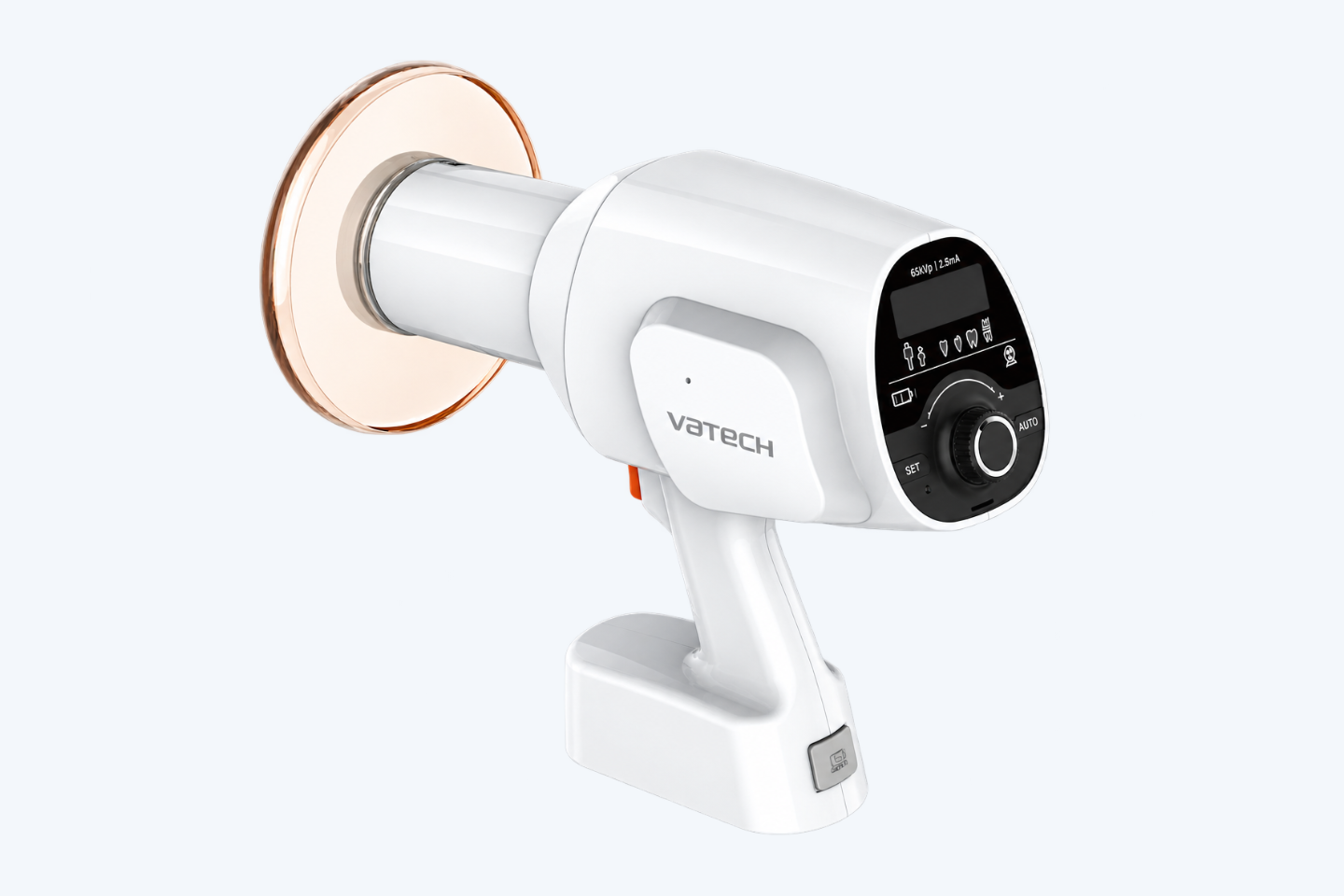

Faster Workflow. Carbon Nano Technology reduces cooldown time by up to 75%, letting your team take more X-rays with less waiting between exposures. That means smoother patient turnover and more time devoted to care rather than pausing between images. It is a meaningful boost in efficiency for any busy dental practice.
-

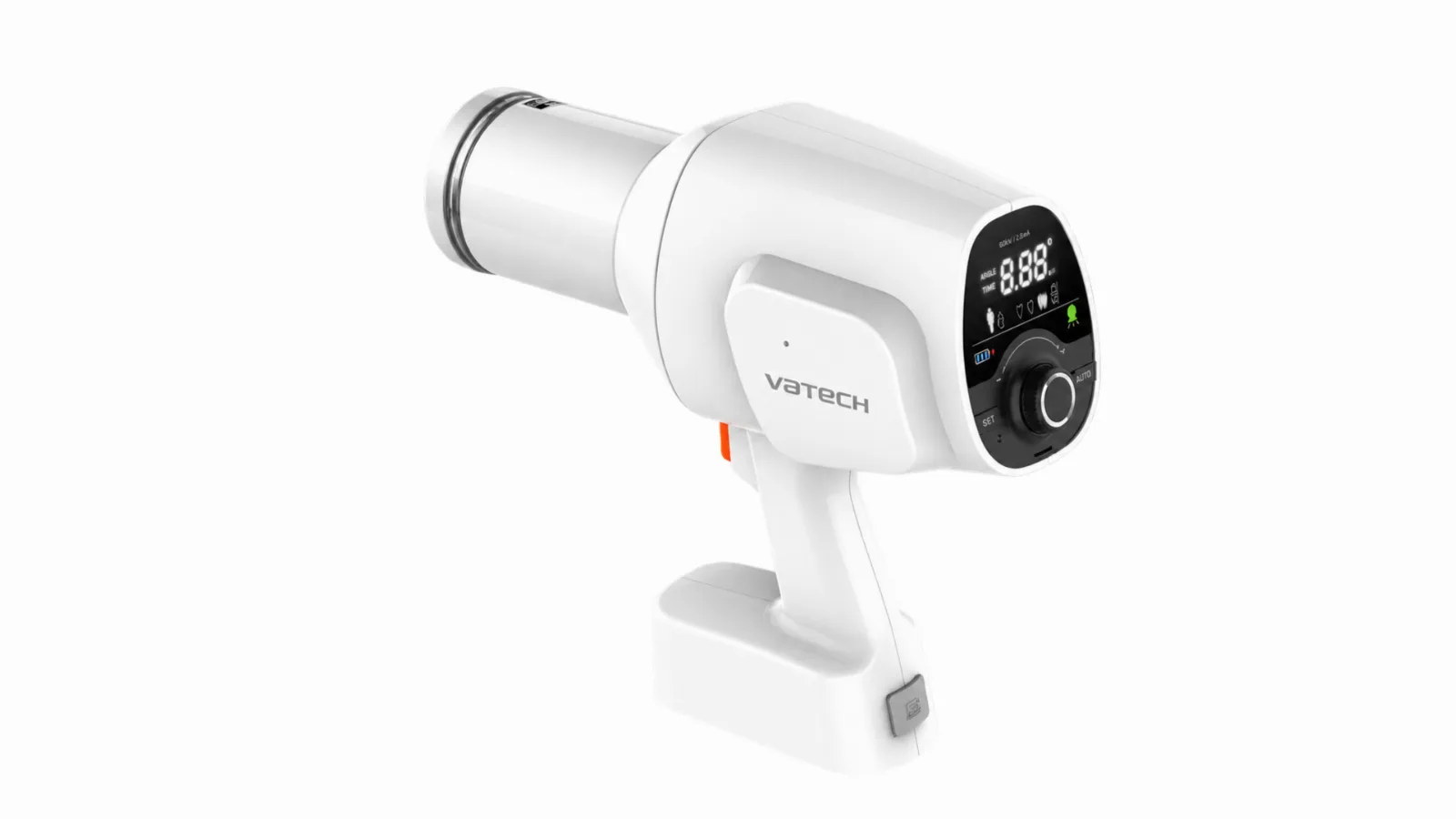

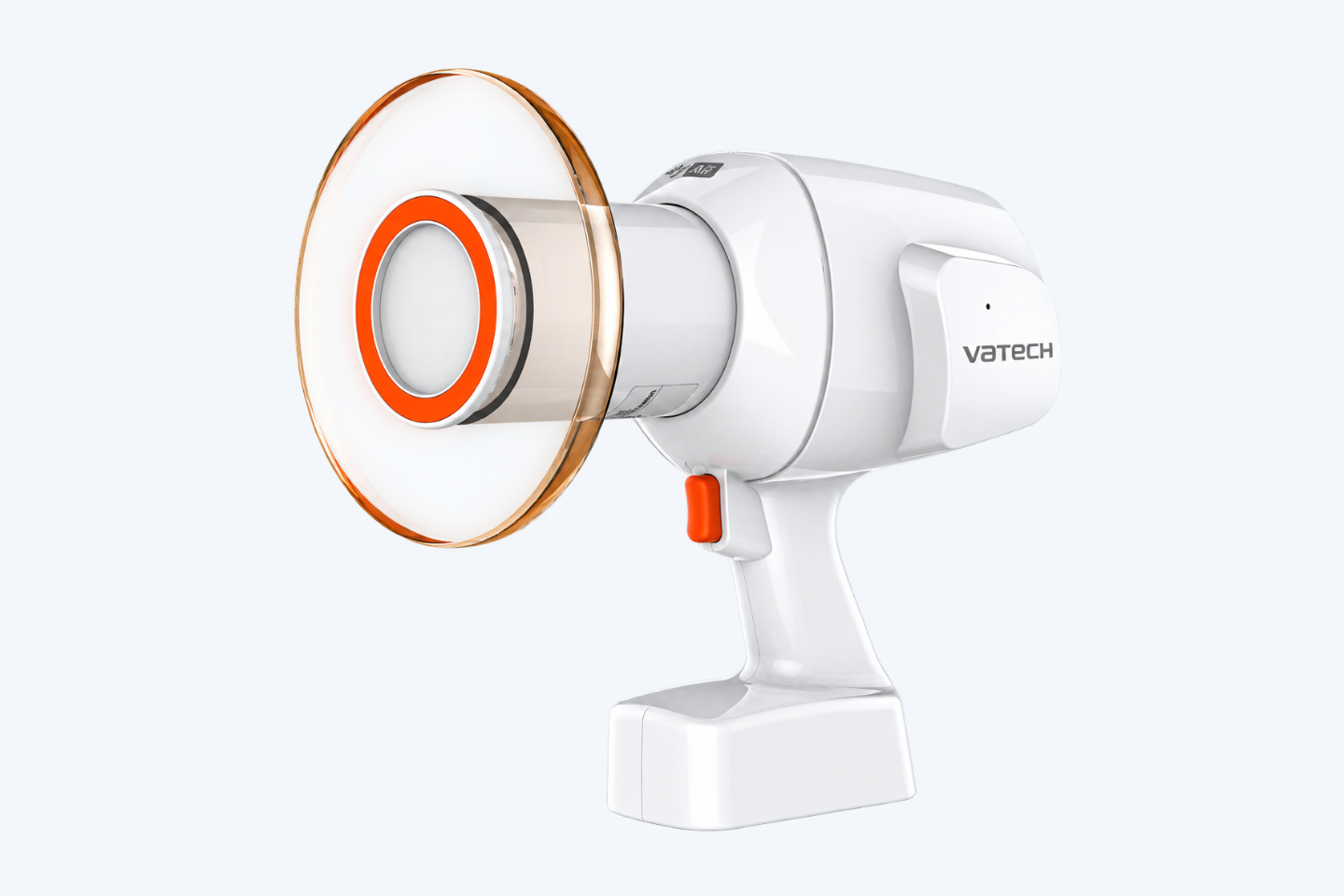

No Warm-Up Time. With no warm-up required, Carbon Nano Technology enables instant exposure the moment you are ready. There is no idle waiting before the first shot, so imaging keeps pace with your clinical rhythm. The result is a faster, smoother workflow from the very first patient of the day.
-

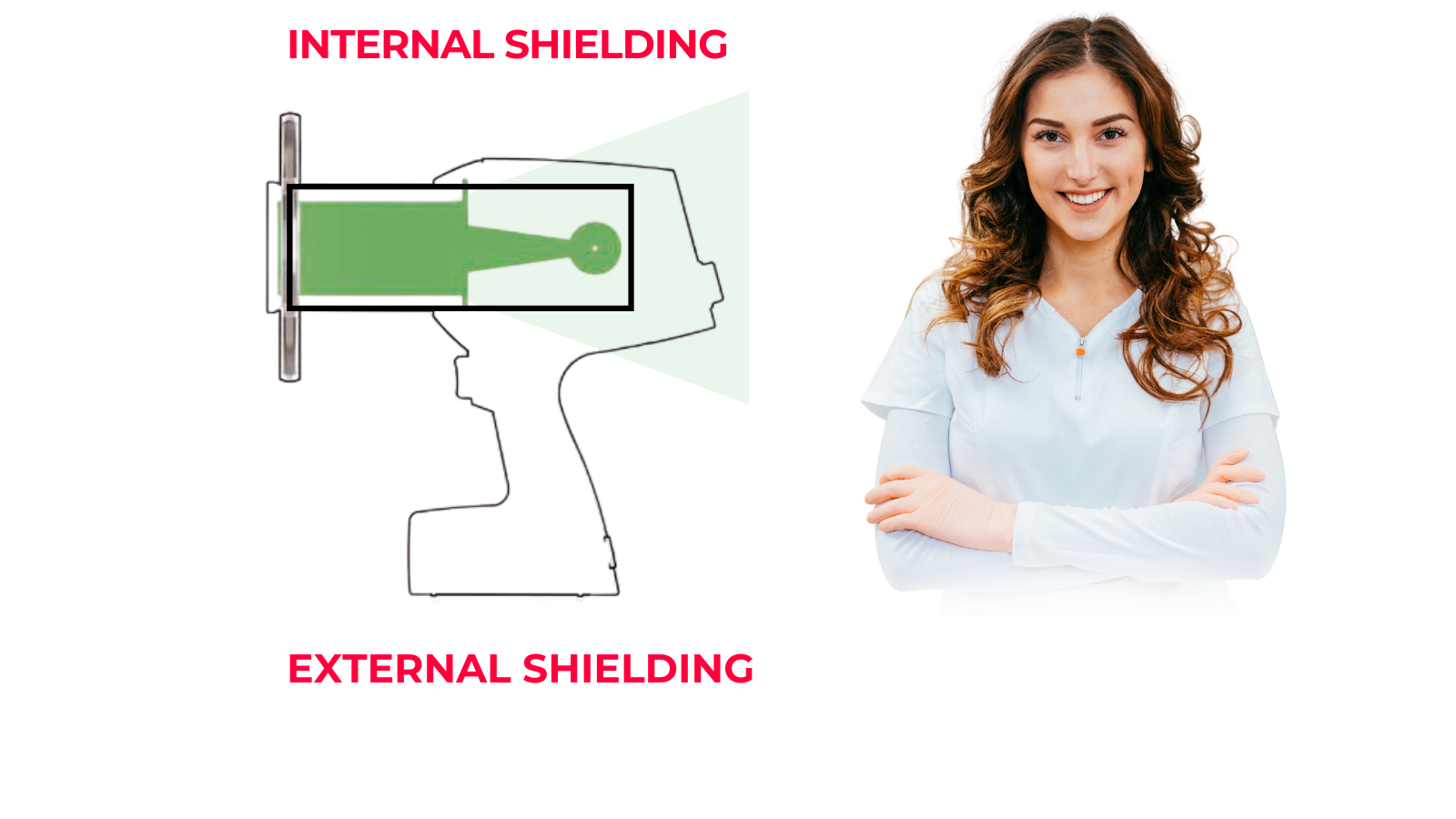

Double Scatter Shield. A double scatter shield design places operator safety at the center of the EzRay Air Plus. Precisely engineered internal radiation shielding protects the operator from radiation leakage during every exposure. This built-in protection lets your staff work with confidence, exposure after exposure.
-

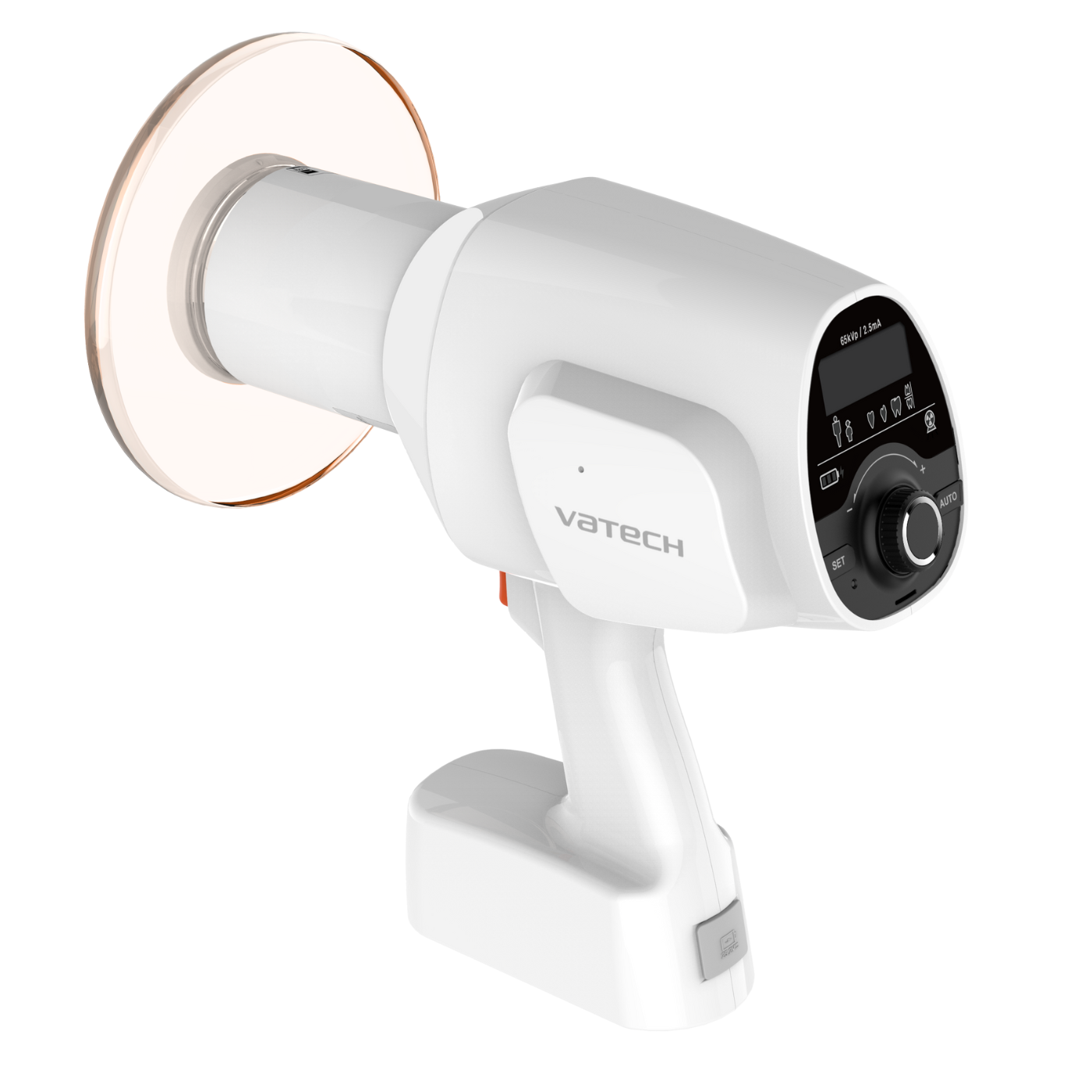

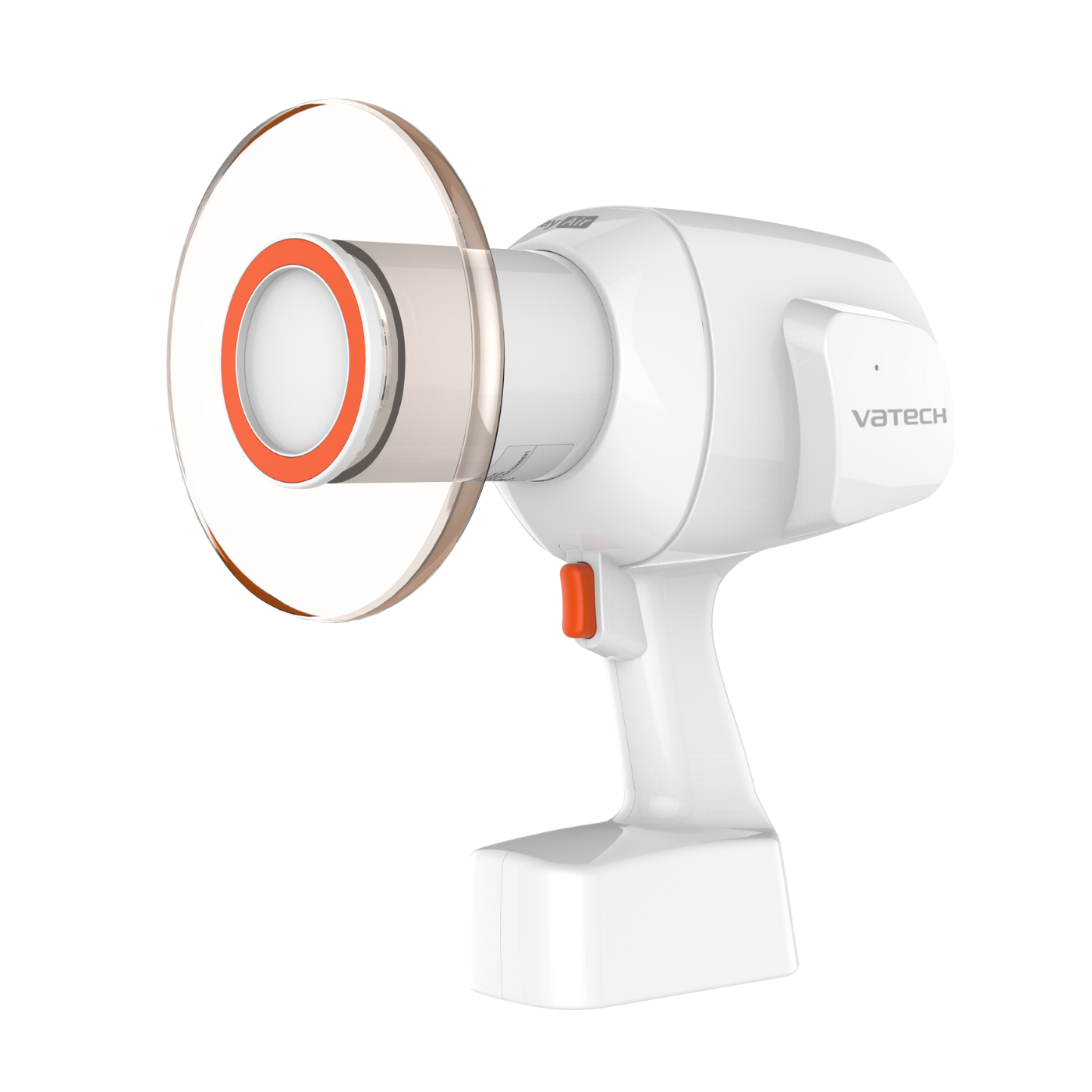

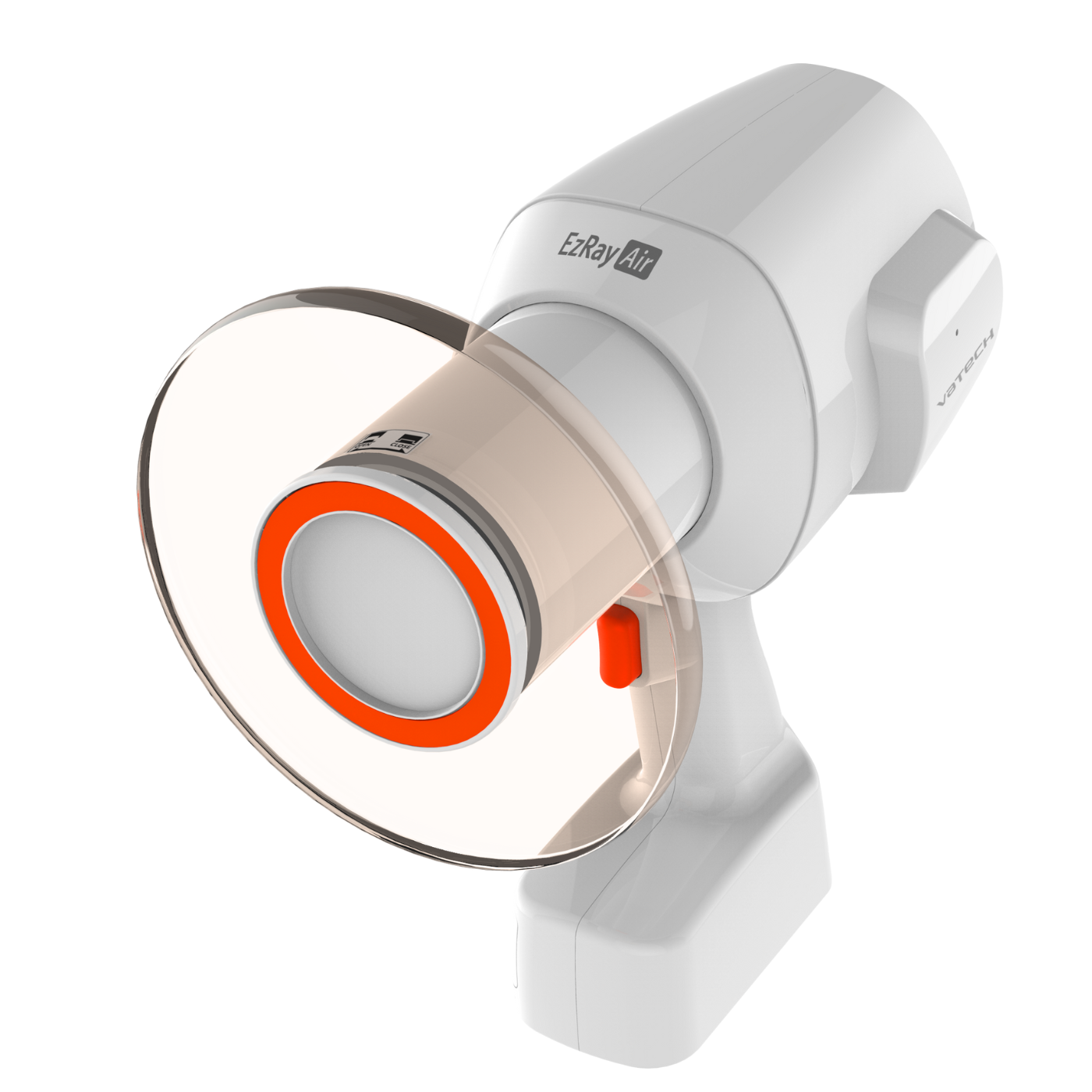

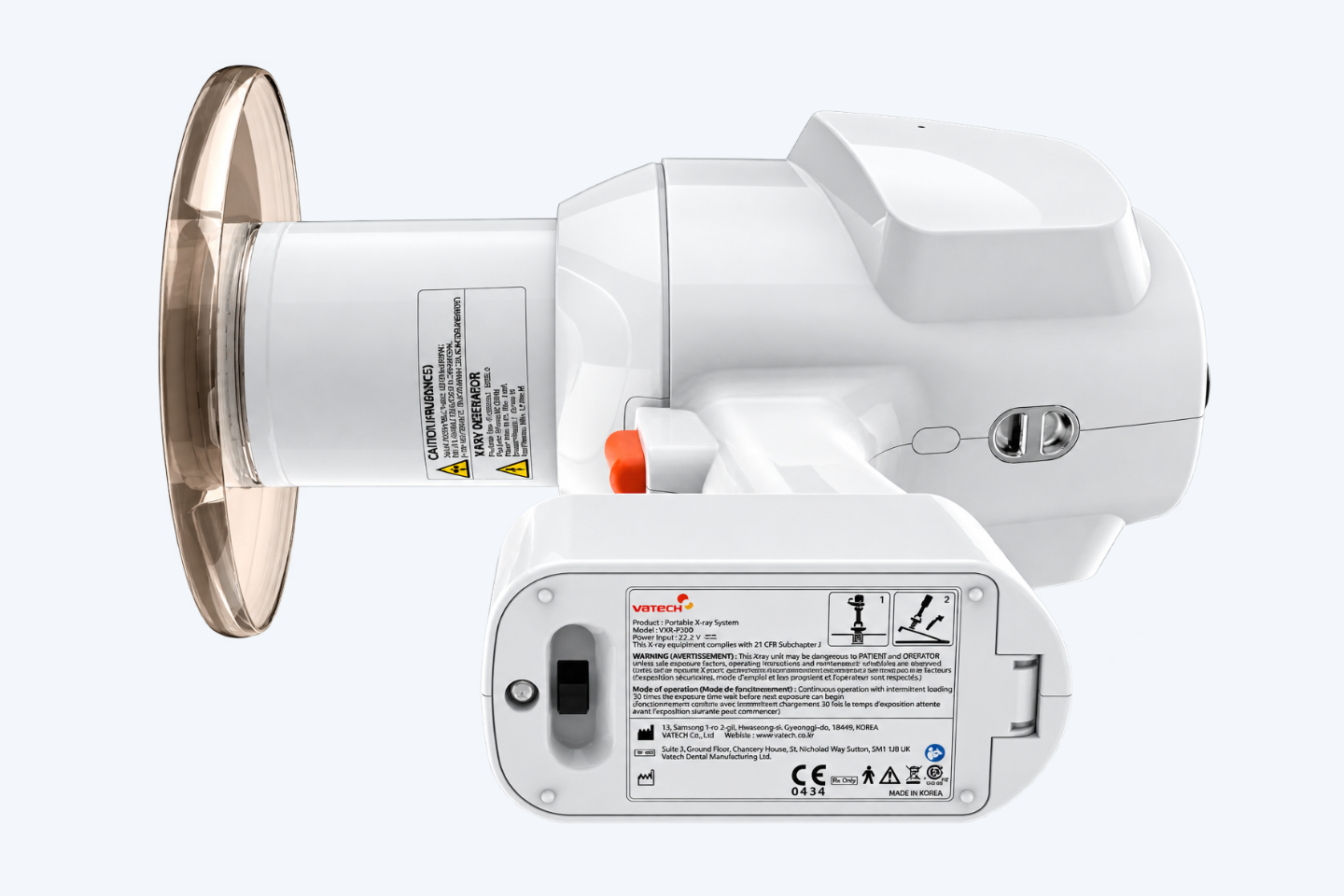

Backscatter Protection. When X-rays strike the patient's surface, scattered radiation can reflect in various directions around the operator. The external backscatter shield greatly reduces this reflected radiation for enhanced safety at the point of care. Together with internal shielding, it delivers comprehensive, everyday protection for your clinical team.
EzRay Air Plus technical details
| Weight | 1.8 kg |

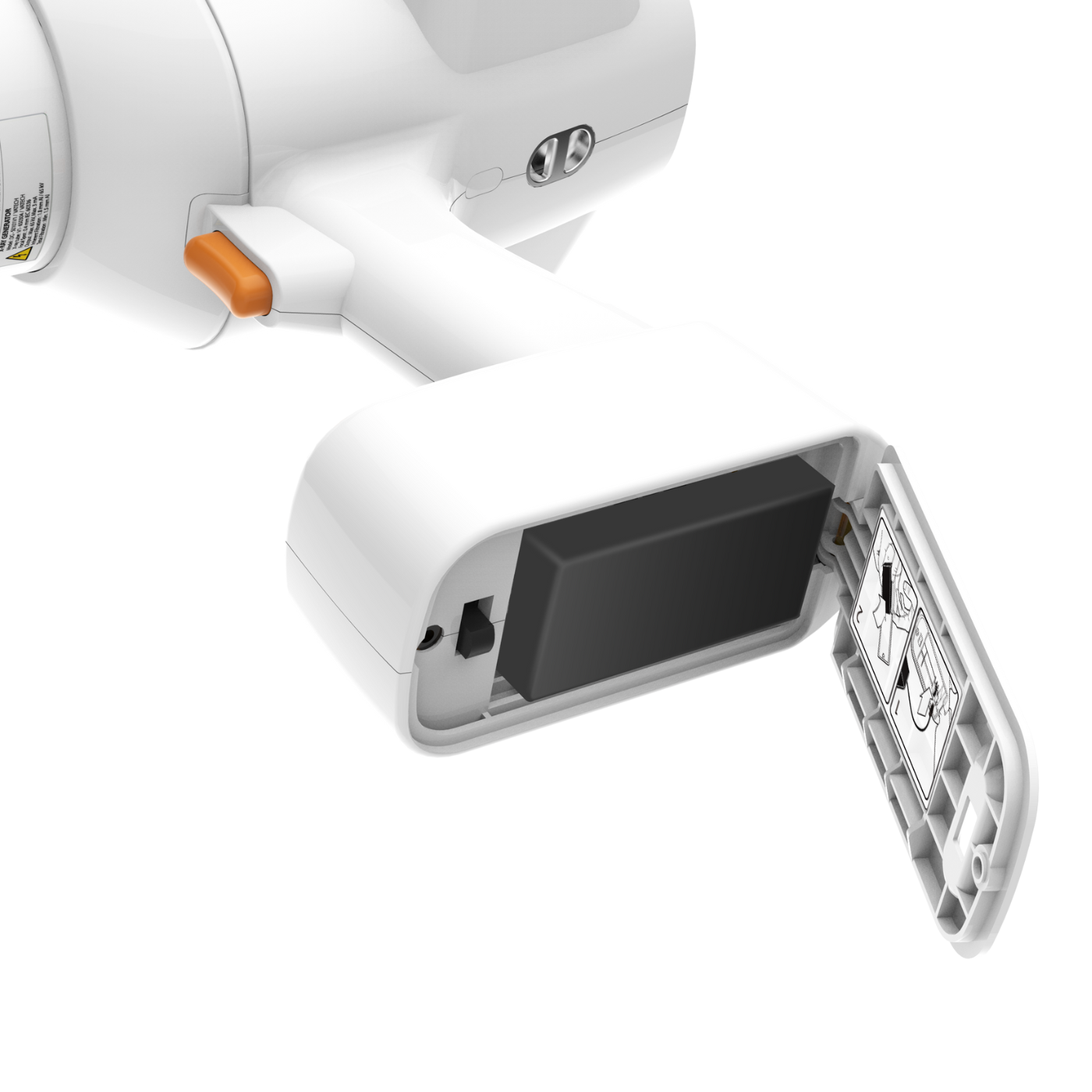

| Battery | 2500 mAh |
| Focal Spot | 0.4 mm |
| Tube Voltage | 65 kV |
| Tube Current | 2.5 mA |
| Exposure Time Range | 0.05 ~ 1.00 sec |
| Total Filtration | Min. 1.5 mm Al |
| Source-to-Skin Distance | 200 mm |
| Maximum Duty Cycle | 1 : 60 |
| Optional Accessories | Backscatter shield, carry case |
| Warranty | Up to 5 years |
Opens the official VATECH EzRay Air Plus catalogue (PDF) in a new tab.
Backed by up to 5 years of warranty
Every install includes on-site training and VATECH123 support. Tell us about your clinic and we'll put together an offer.
A closer look
Clear, sharp images — the detail that makes the difference in diagnosis.
Frequently asked questions
What is the EzRay Air Plus?
A lightweight portable dental X-ray unit for chairside intraoral imaging.
Why does the weight matter?
At 1.8 kg it reduces operator strain and enables single-hand use.
What is CNT technology?
Carbon Nano Technology reduces the unit's weight while keeping it robust.
Who is it ideal for?
Dental practices needing a portable, easy-to-position X-ray source.
Get a demo of the EzRay Air Plus
No obligation. A VATECH representative will bring it to your clinic.
