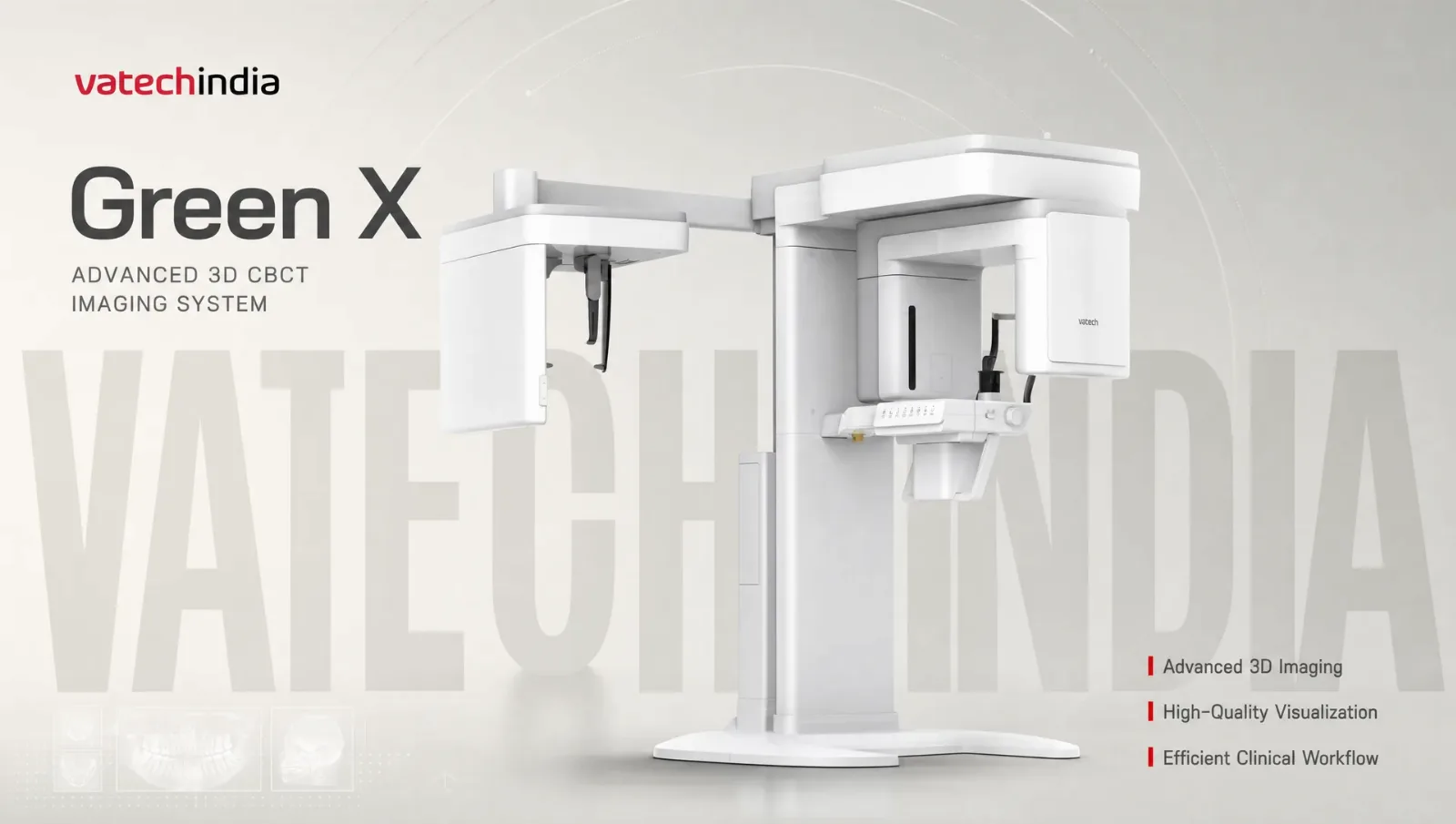

Green X
The advanced 4-in-1 digital imaging system
Green X is an advanced 4-in-1 digital X-ray imaging system combining Pano, Ceph (optional), CBCT and Model Scan. Backed by VATECH's imaging experience, it delivers high-quality images at lower radiation for better diagnostic accuracy and treatment planning.
Interested in the Green X?
Talk to us about pricing, EMI options and installation — or have it demonstrated in your own clinic.
Take a closer look.
-
4-in-1 Imaging System. Green X is an advanced 4-in-1 digital X-ray imaging system incorporating CBCT, Panoramic, Ceph (optional) and Model Scan. Drawing on Vatech's extensive experience in dental imaging, it produces high-quality images with lower radiation, improving diagnostic accuracy and leading to better treatment planning and greater patient satisfaction.
-
Multi FOV Selection. The Multi FOV option lets users choose the optimum field of view while minimizing exposure to areas outside the region of interest. Selectable sizes include 16 × 15, 16 × 9 (Double Scan), 12 × 9, 8 × 8, 8 × 5, 5 × 5 and 4 × 4 cm, covering the full arch, sinus and both TMJ together.
-
Green Scan Mode. Thanks to its fast scan time, Green X minimizes motion artifacts and enables a faster workflow. Green Scan Mode captures a Ceph in 1.9 seconds, CBCT in 2.9 seconds and Pano in 3.9 seconds, producing superb diagnostic images while focusing on the highest quality of patient care.
-
High-Resolution Endo Mode. With its 4 × 4 cm volume mode and 50-micron voxel size, the endo mode optimizes treatment of highly focused regions of interest. It is ideal for endodontic use, letting the dentist achieve extraordinary images in a high-resolution voxel, backed by powerful 3D endo software.
-
Clear, Artifact-Free Images. Compressed Sensing Technology dramatically improves image quality with much less artifact and noise, iterating reconstruction ten times more than the normal amount. The ART-V artifact reduction function removes metal artifacts that hinder visualization, giving clear images and more confidence for accurate implant planning.
Green X technical details
| CBCT Model | GREEN X (PHT-75CHS) |
| Function | CT + Pano + Ceph + Model Scan |
| Focal Spot | 0.5 mm (IEC 60336) |
| CT FOV Size | 4×4, 5×5, 8×5, 8×8, 12×9, 16×9 cm / 16×15 cm (Double Scan) |
| Voxel Size | 0.05 mm (4×4) up to 0.3 mm (16×9) |
| Pano Exposure Time | 3.9 sec / 13.5 sec |
| Ceph Exposure Time | 1.9 sec / 14.1 sec |
| CBCT Exposure Time | 2.9 sec / 9.0 sec / 18.0 sec |
| Grey Scale | 14 bit |
| Tube Voltage / Current | 60 – 99 kVp / 4 – 16 mA |
| Warranty | 5–10 years |
Opens the official VATECH Green X catalogue (PDF) in a new tab.
Backed by up to 10 years of warranty
Every install includes on-site training and VATECH123 support. Tell us about your clinic and we'll put together an offer.
A closer look
Clear, sharp images — the detail that makes the difference in diagnosis.
Get a demo of the Green X
No obligation. A VATECH representative will bring it to your clinic.
