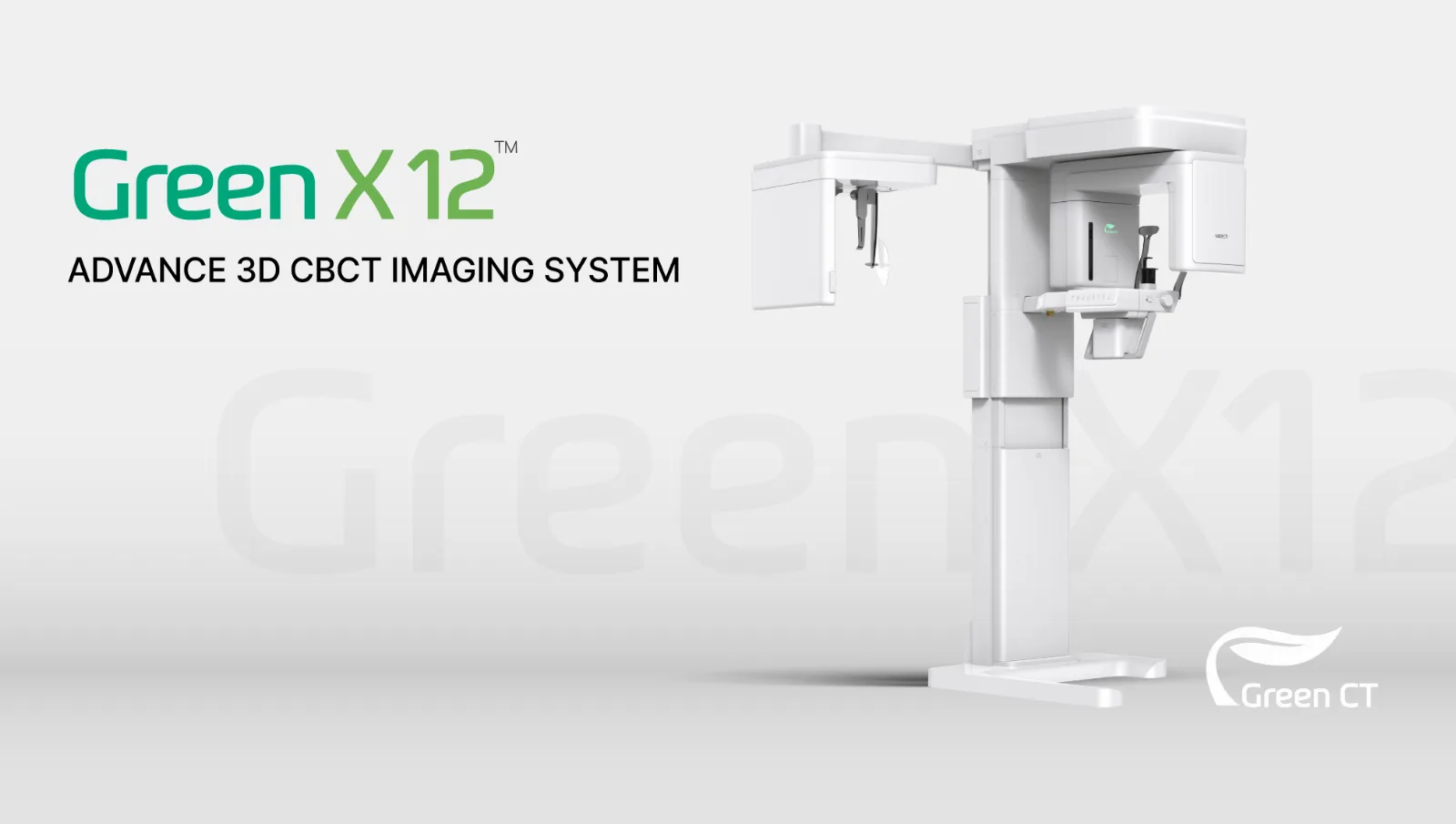

Green X 12
Compressed Sensing Technology for cleaner 3D imaging
The Green X 12 is an advanced extraoral 3D imaging system that pairs Compressed Sensing Technology with multi-FOV selection and Smart Focus to sharpen diagnostic imaging while lowering patient radiation.
Interested in the Green X 12?
Talk to us about pricing, EMI options and installation — or have it demonstrated in your own clinic.
Take a closer look.
-
4-in-1 Imaging System. The Green X 12 is an advanced 4-in-1 digital X-ray imaging system that combines CBCT, Panoramic, Ceph (optional) and Model Scan in a single platform. Built on Vatech's extensive dental imaging experience, it delivers high-quality images with lower radiation, improving diagnostic accuracy and supporting confident treatment planning.
-
Multi FOV Selection. A range of selectable fields of view lets clinicians match the scan to the case. Options include 12 × 14 (Double Scan), 12 × 8.5, 8 × 8, 8 × 5 and 4 × 4 cm, covering the full arch, sinus and left and right TMJ. This suits most oral surgery cases, including endodontic treatment and multiple implant surgeries.
-
Smart Focus Imaging. With Smart Focus technology, a single scan produces up to five high-resolution images, so multiple areas of care can be reviewed without exposing the patient to radiation several times. One scan delivers three 4 × 4 cm endo images, one 12 × 8.5 cm full arch and one Auto Pano.
-
High-Resolution Endo Mode. The endo mode combines a 4 × 4 cm volume with a 50-micron voxel size to optimize treatment of highly focused regions of interest. It is ideal for endodontic use, allowing the dentist to achieve extraordinary detail in a high-resolution voxel, supported by powerful 3D endo software.
-
Clear, Artifact-Free Images. Vatech's Compressed Sensing Technology iterates the reconstruction process ten times more than usual to depict the object's true representation with far less artifact and noise. The ART-V metal artifact reduction function further removes metal-induced distortion, delivering clear images for confident diagnosis and implant planning.
Green X 12 technical details
| CBCT Model | GREEN X (PHT-75CHS) |
| Function | CT + Pano + Ceph + Model Scan |
| Focal Spot | 0.5 mm (IEC 60336) |
| CT FOV Size | 4×4 (Endo), 8×5, 8×8, 12×8.5, 12×14 (Double Scan) + Smart Focus |
| Voxel Size | 0.05 mm (4×4) / 0.07 mm (Smart Focus) up to 0.3 mm |
| Pano Exposure Time | 7.5 sec / 14.1 sec |
| Ceph Exposure Time | 1.9 sec / 4.9 sec |
| CBCT Exposure Time | 10.0 sec (8×5–8×8) / 15.5 sec (12×8.5, Smart Focus, Double Scan) / 13.0 sec (Endo) |
| Grey Scale | 14 bit |
| Tube Voltage / Current | 60 – 99 kVp / 4 – 16 mA |
| Warranty | 5–10 years |
Opens the official VATECH Green X 12 catalogue (PDF) in a new tab.
Backed by up to 10 years of warranty
Every install includes on-site training and VATECH123 support. Tell us about your clinic and we'll put together an offer.
A closer look
Clear, sharp images — the detail that makes the difference in diagnosis.
Get a demo of the Green X 12
No obligation. A VATECH representative will bring it to your clinic.
