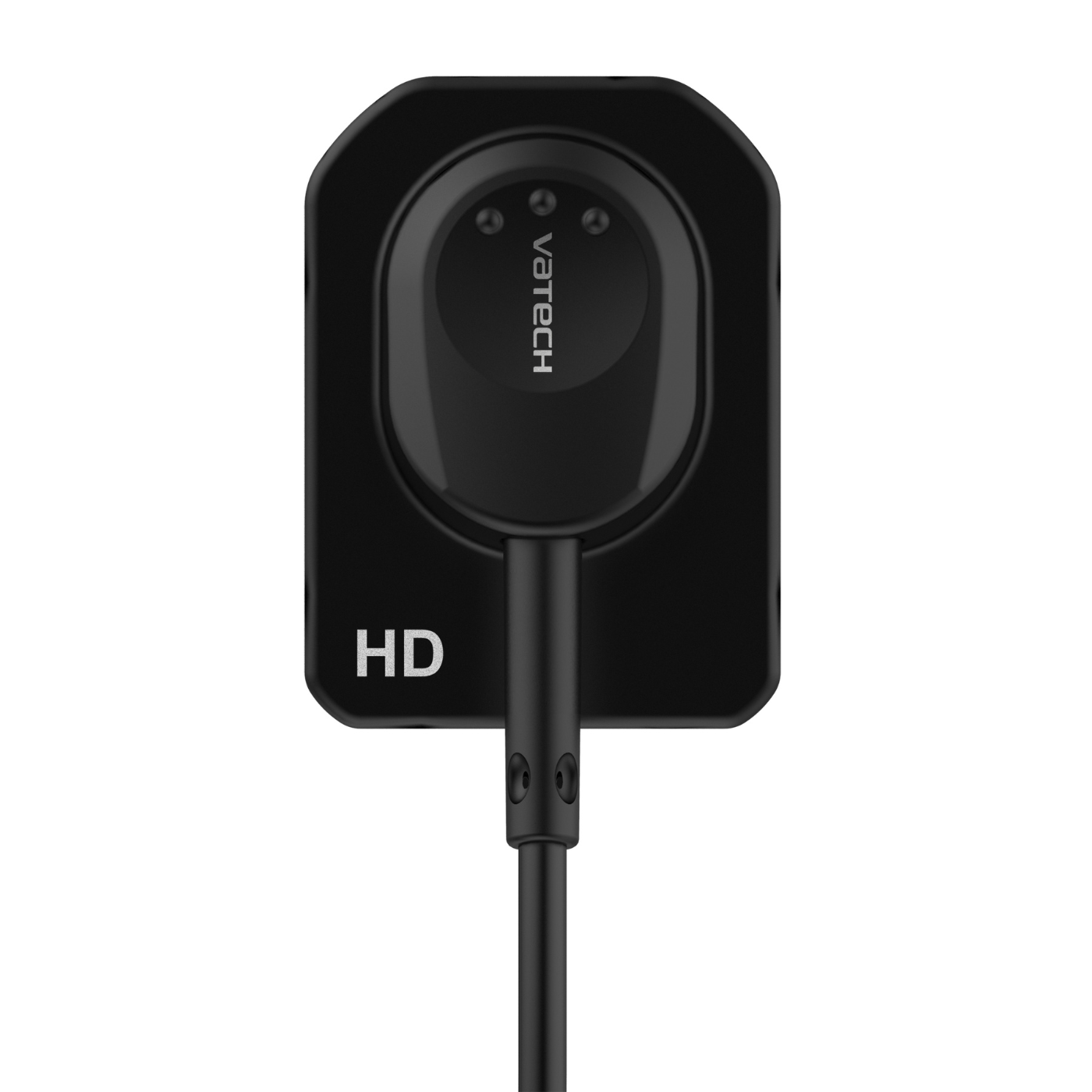

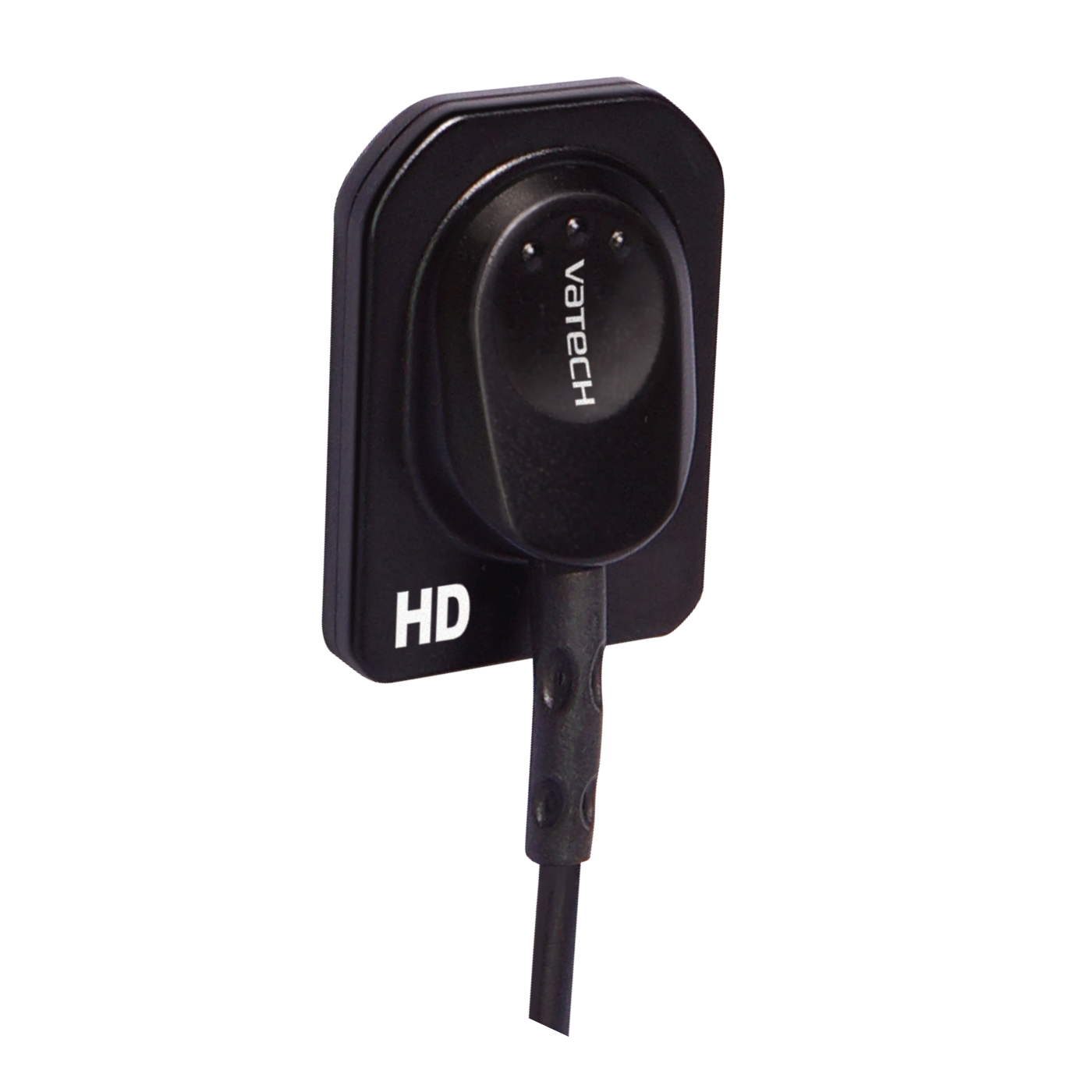

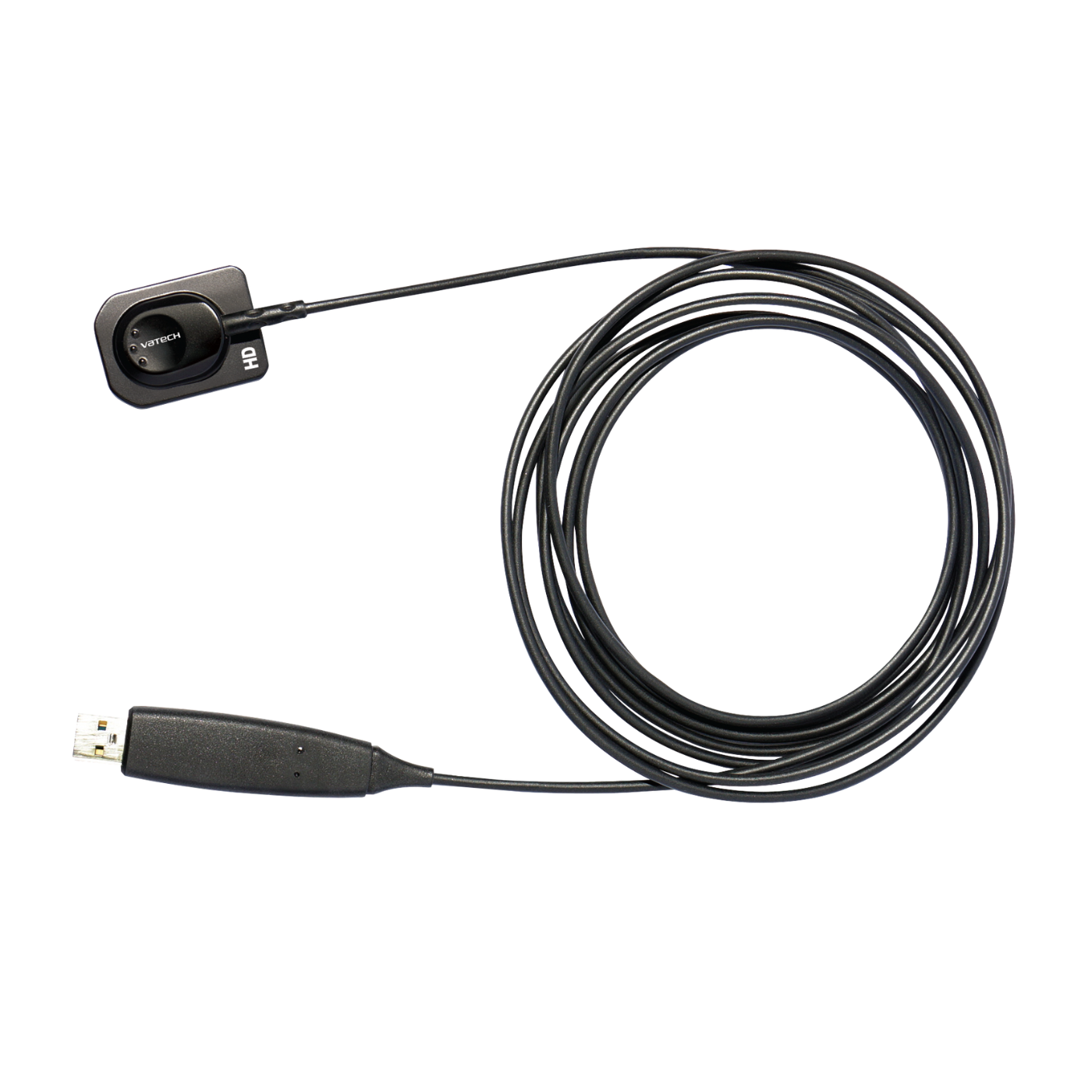

EzSensor HD
Precise, professional quality for accurate diagnosis
A slim CMOS intraoral sensor offering high-resolution imaging at 33.78 lp/mm, combining noise and artifact reduction with enhanced sensitivity to prioritise both diagnostic clarity and patient comfort.
Interested in the EzSensor HD?
Talk to us about pricing, EMI options and installation — or have it demonstrated in your own clinic.
Take a closer look.
-
Highest-Resolution Sensor. The EzSensor HD is the world's highest-resolution intraoral sensor, delivering an exceptional 33 lp/mm HD resolution. This clarity brings out the finest anatomical detail for confident diagnosis of caries, periodontal conditions and restorative work. Practitioners gain the diagnostic detail they need in a single, sharp exposure.
-
Consistent Across Exposures. Clinically usable across a wide range of exposure settings, the EzSensor HD is more consistent than other sensors on the market. Practitioners benefit from fewer exposure-related retakes and a less time-consuming workflow. Steady performance keeps appointments efficient and diagnostic images dependable every time.
-

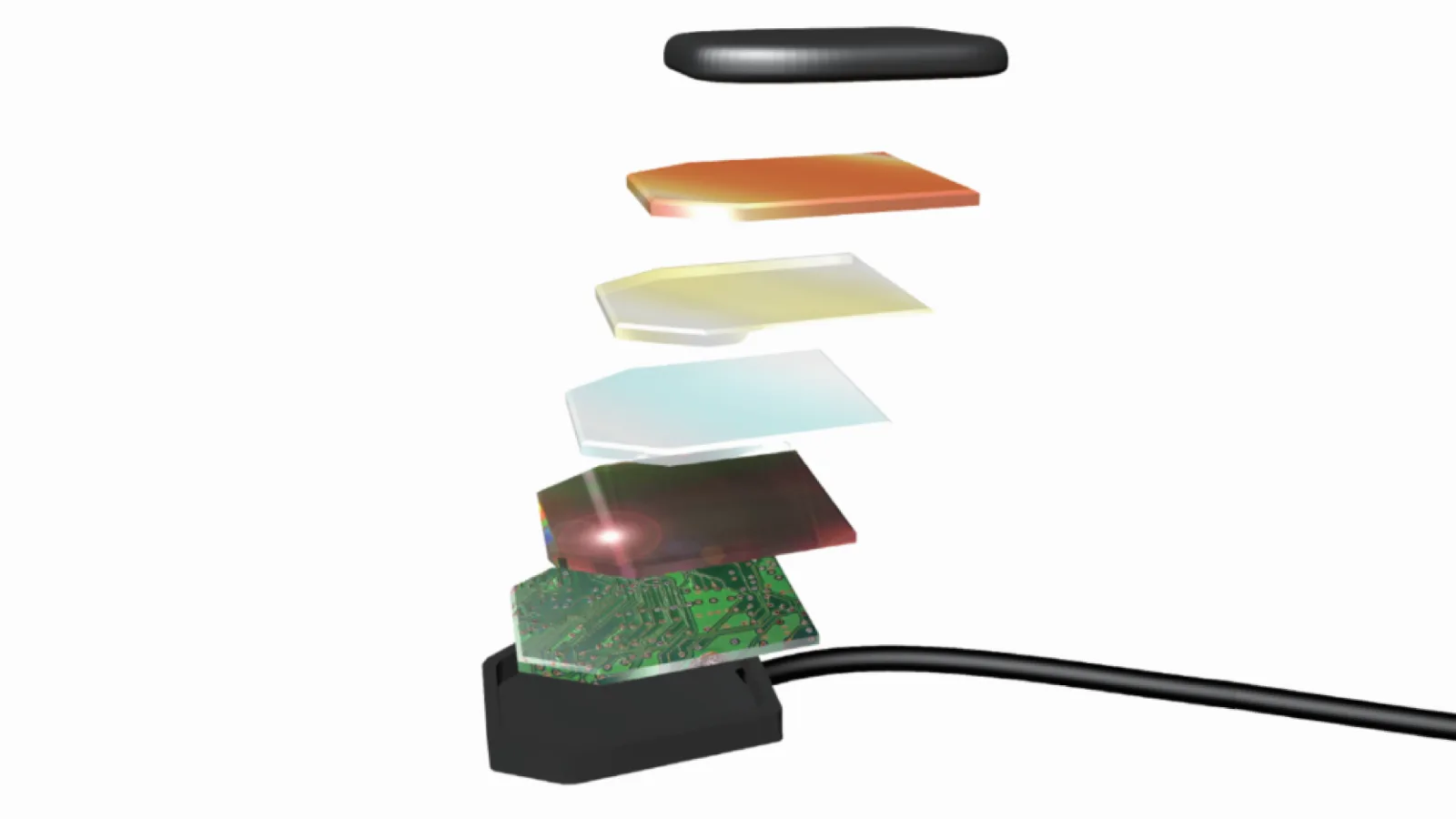

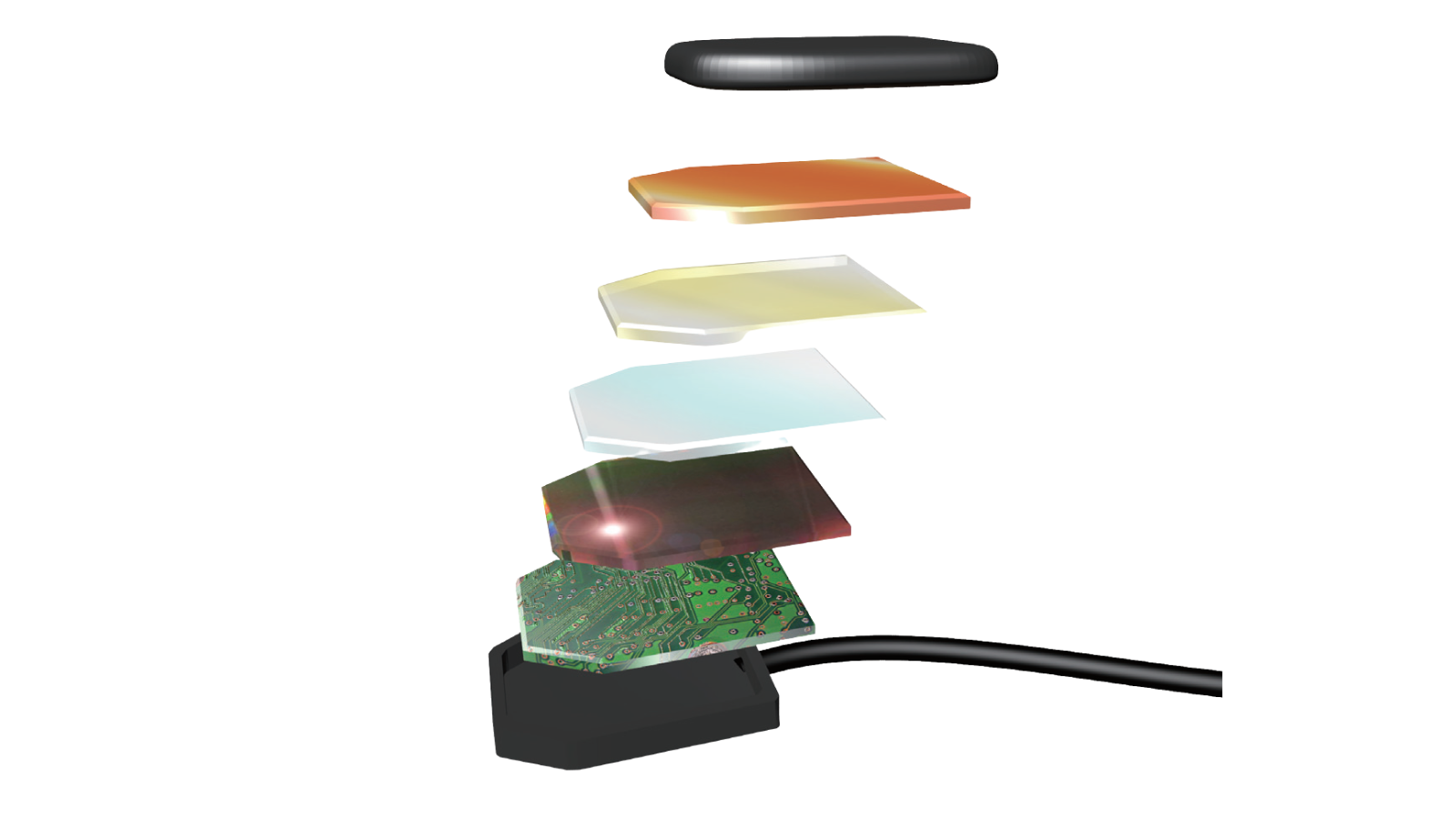

High-Sensitivity Capture. With its high-sensitivity design, the EzSensor HD captures diagnosable images under virtually any condition, even when paired with an older X-ray source. Because fewer retakes are needed, patients benefit from a meaningful reduction in radiation exposure. It is a smart upgrade that works with the equipment you already own.
-

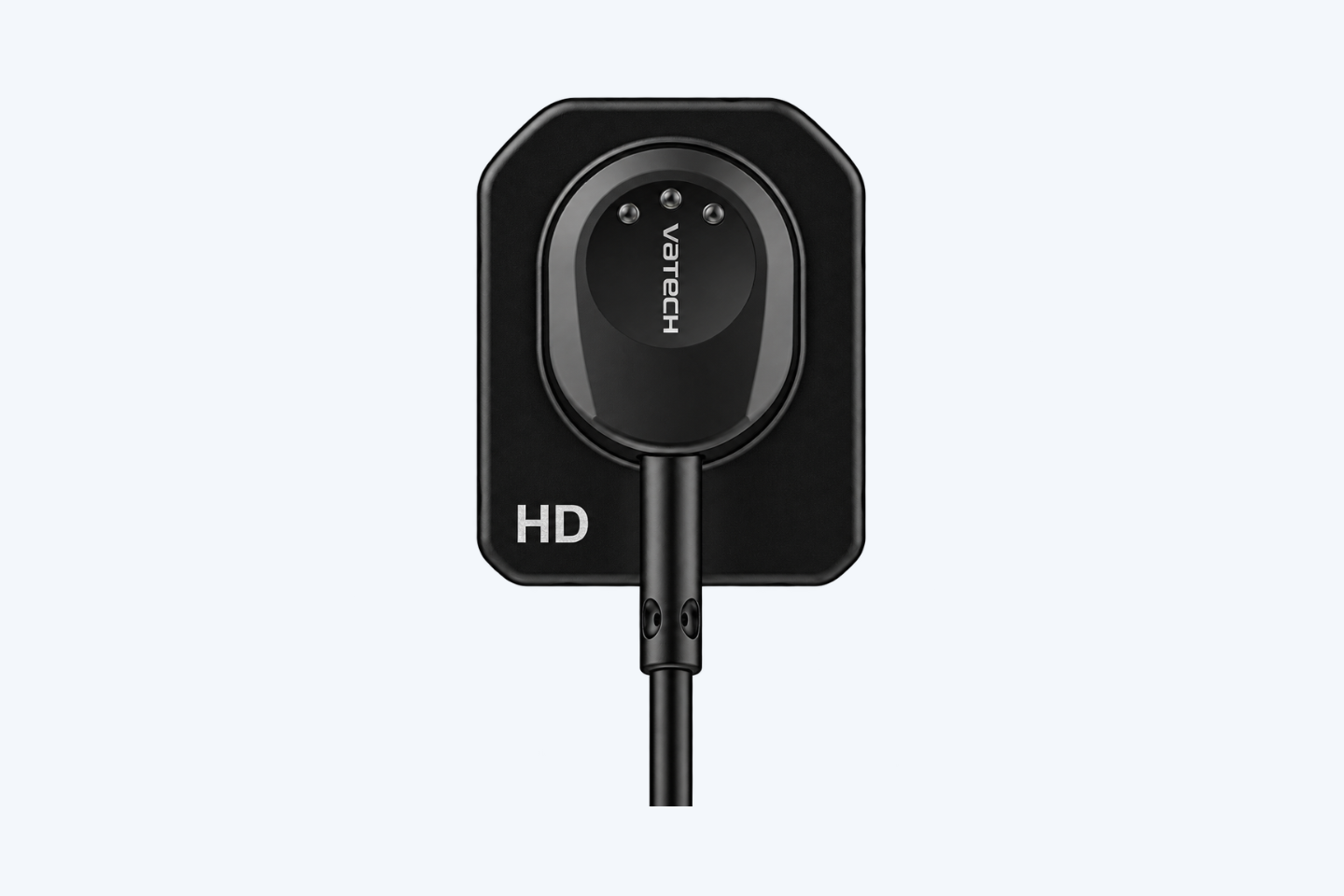

Seven Contrast Filters. Switch quickly and easily among seven new contrast filters to find your perfect diagnostic image. Higher-contrast filters suit periodontics, while lower-contrast filters aid caries detection and restorative dentistry. With the EzSensor HD you always have this full range of enhancement tools at your disposal.
-
Comfortable Rounded Design. The EzSensor HD features a rounded corner that eases placement against oral tissues and improves patient comfort during acquisition. Its ergonomic form helps the clinician position the sensor smoothly and accurately. Gentler contact makes intraoral imaging a more pleasant experience for both patient and practitioner.
EzSensor HD technical details
| Detector | CMOS |
| Pixel Size | 14.8 µm |
| Theoretical Resolution | 33.78 lp/mm |
| Dynamic Range | 12 bit |

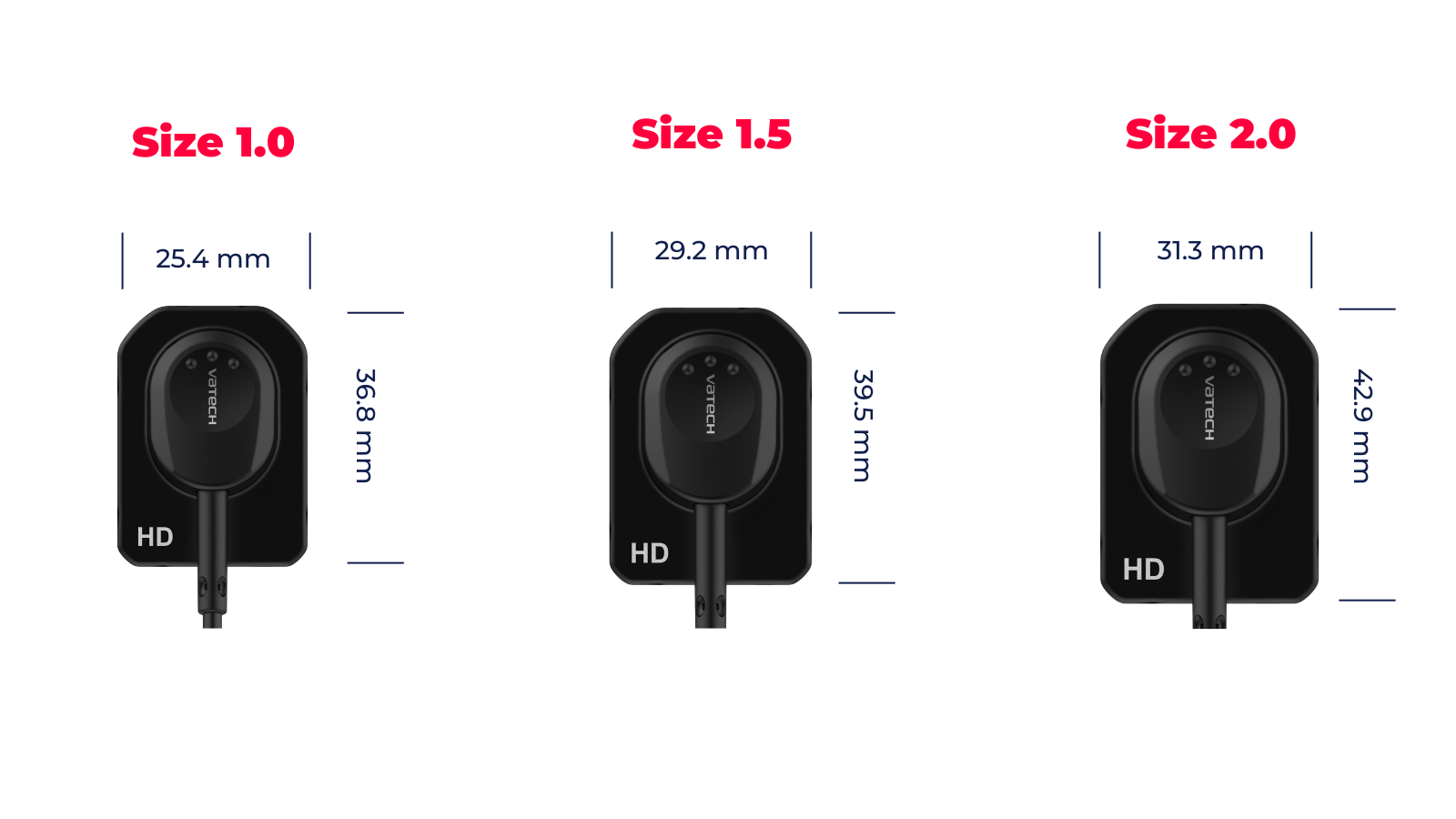

| Active Area (Size 1.5) | 24 × 33 mm |
| Dimensions (Size 1.5) | 29.2 × 39.5 mm (1.14" × 1.55") |

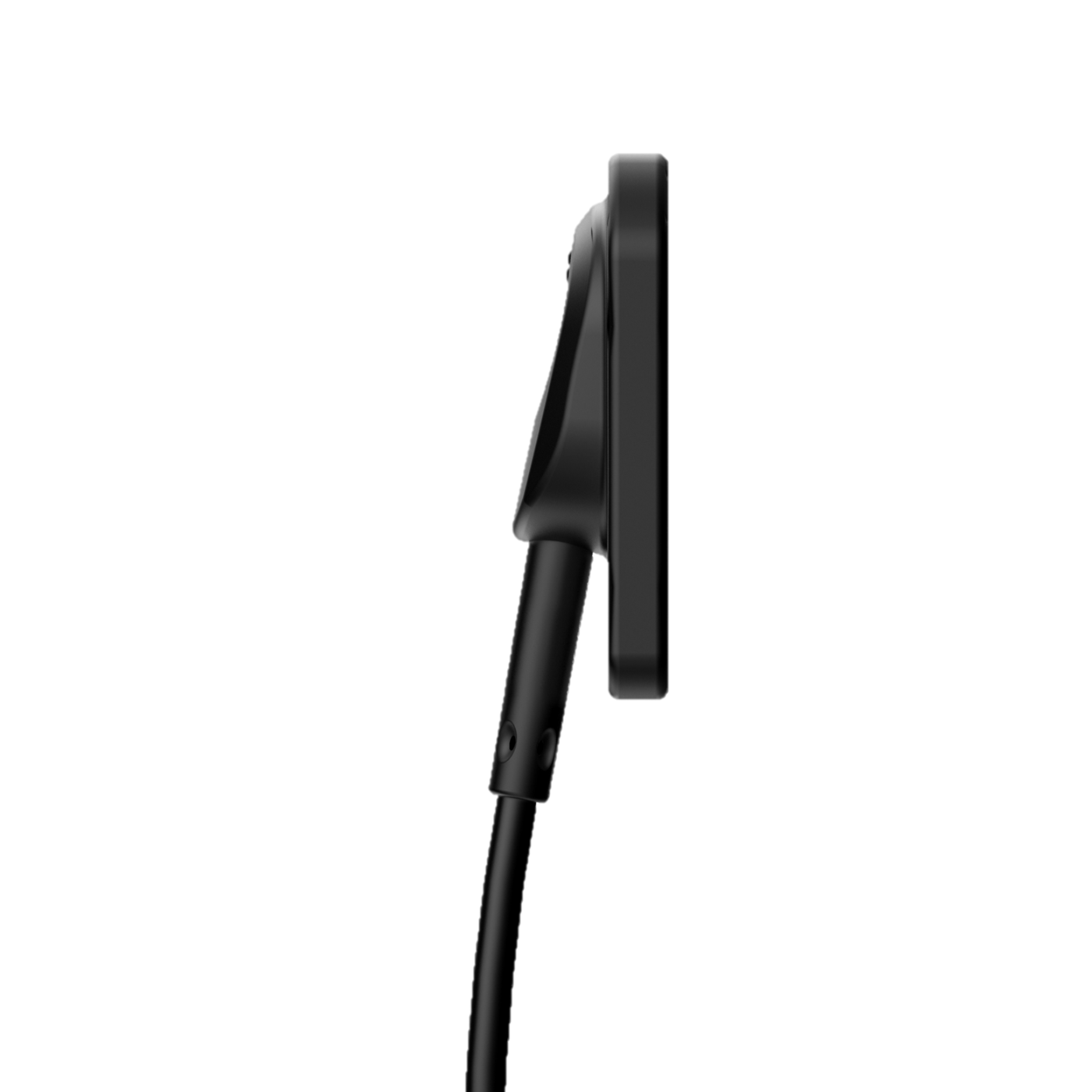

| Thickness | 4.8 mm (0.19") |

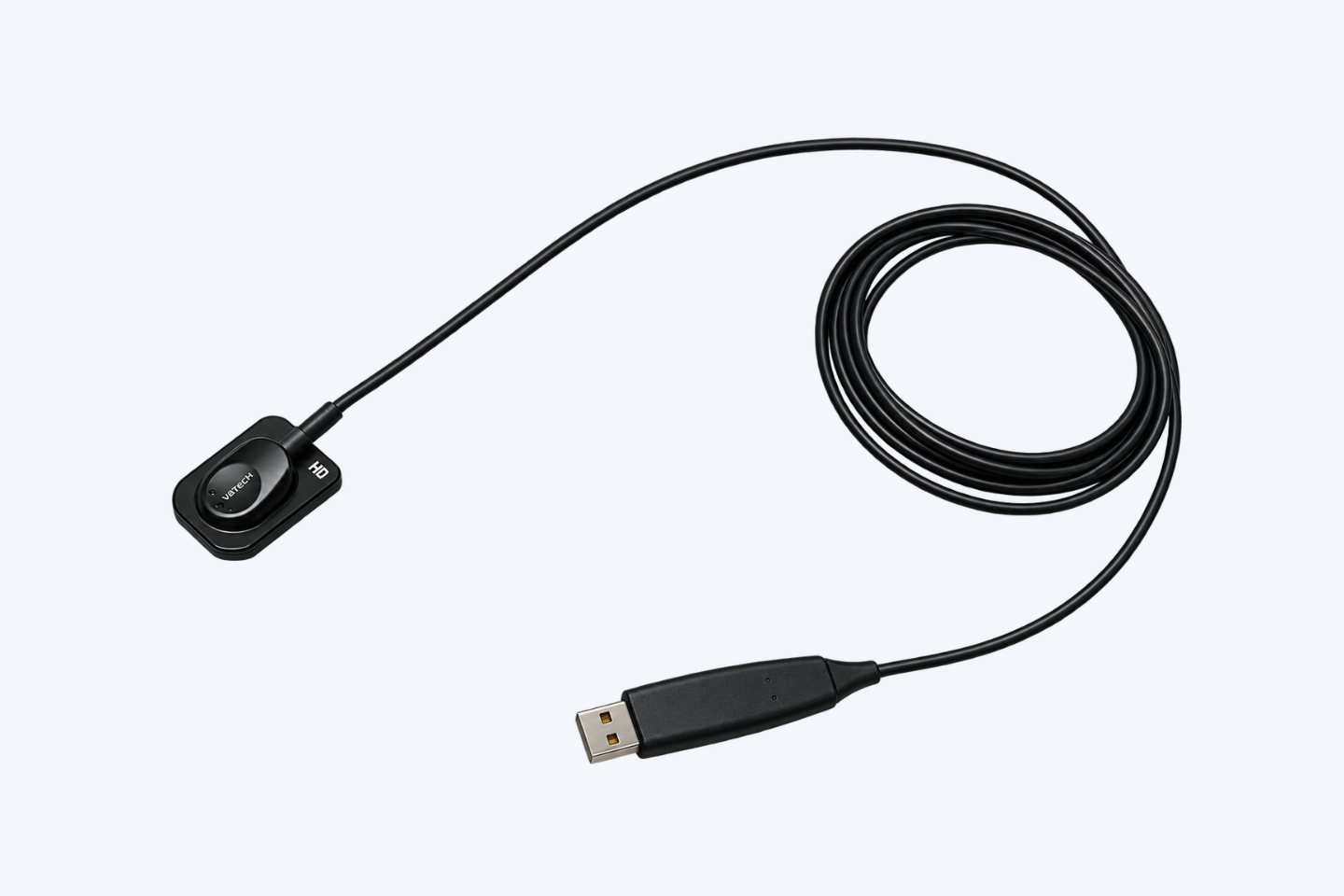

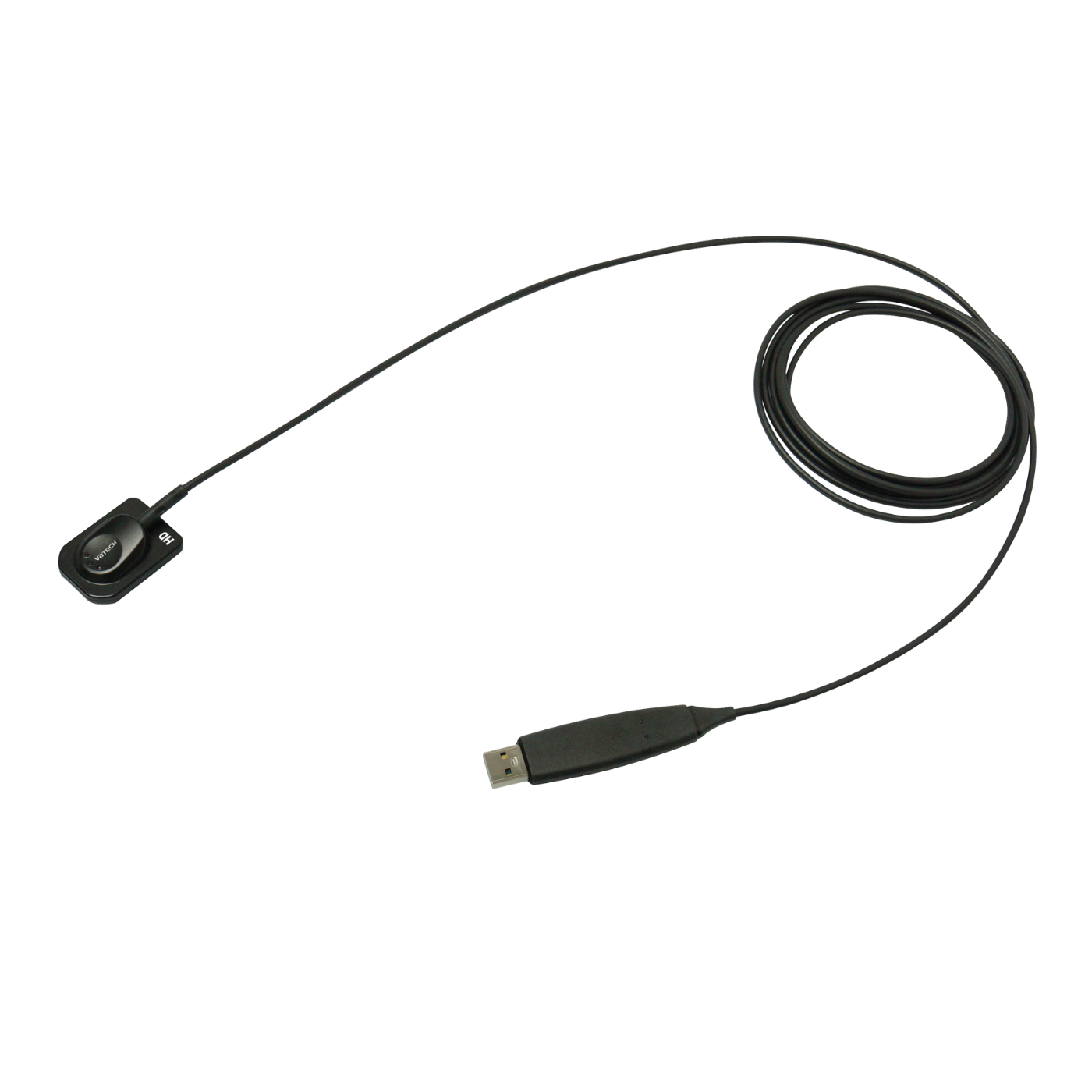

| Cable Length | 2.7 m |

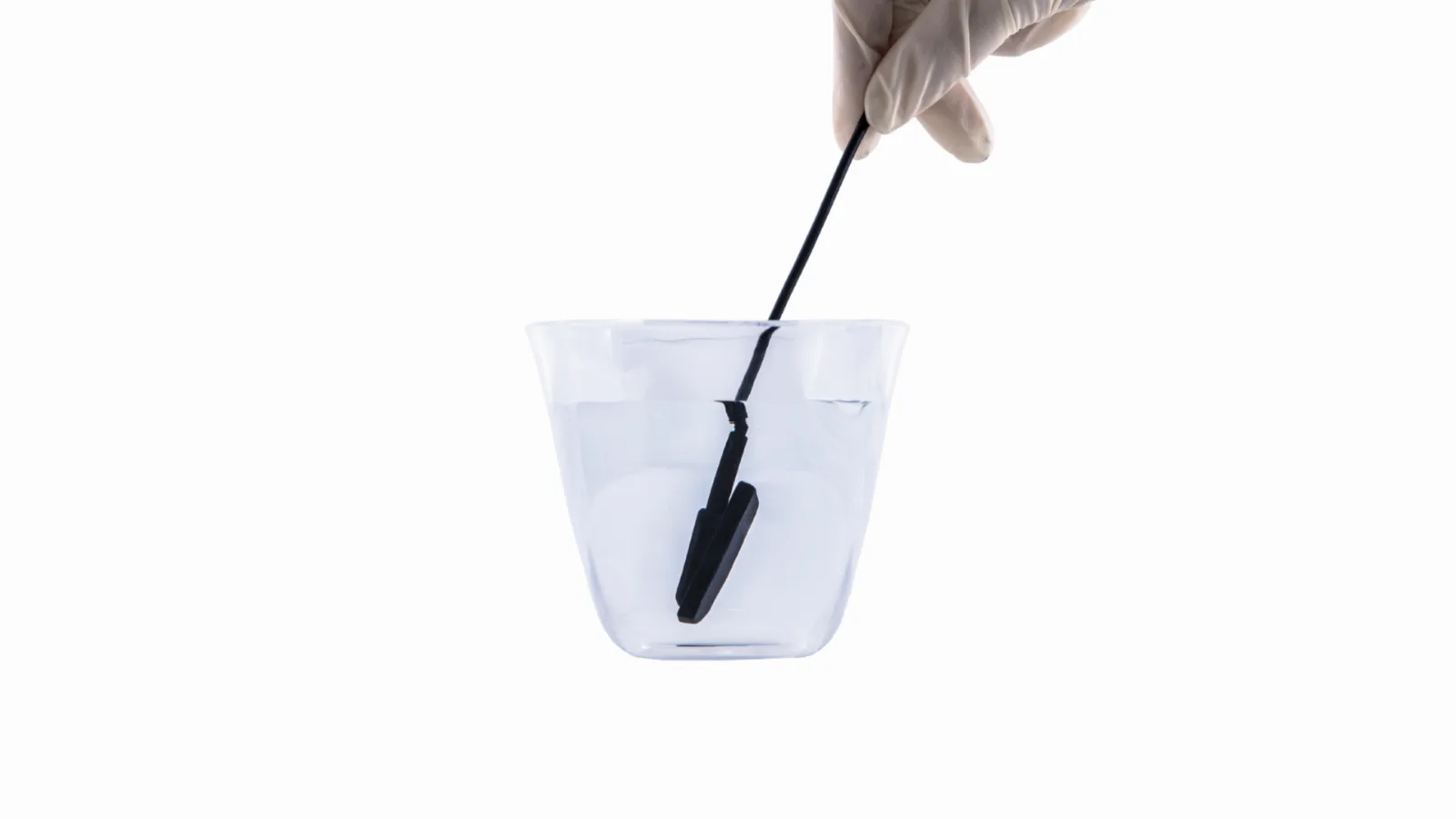

| IP Rating | IP68 |
| Warranty | Up to 5 years |
Opens the official VATECH EzSensor HD catalogue (PDF) in a new tab.
Backed by up to 5 years of warranty
Every install includes on-site training and VATECH123 support. Tell us about your clinic and we'll put together an offer.
A closer look

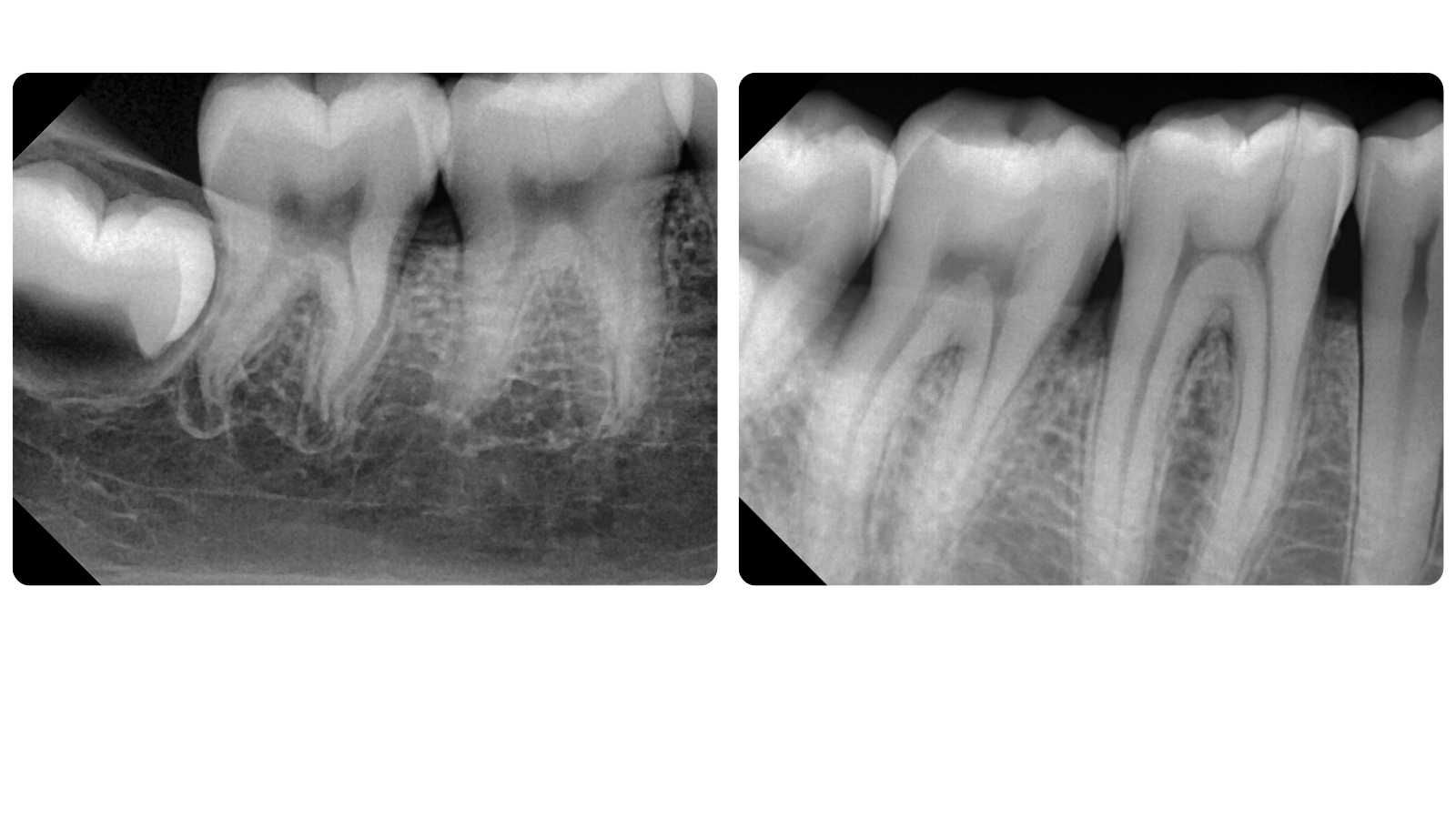

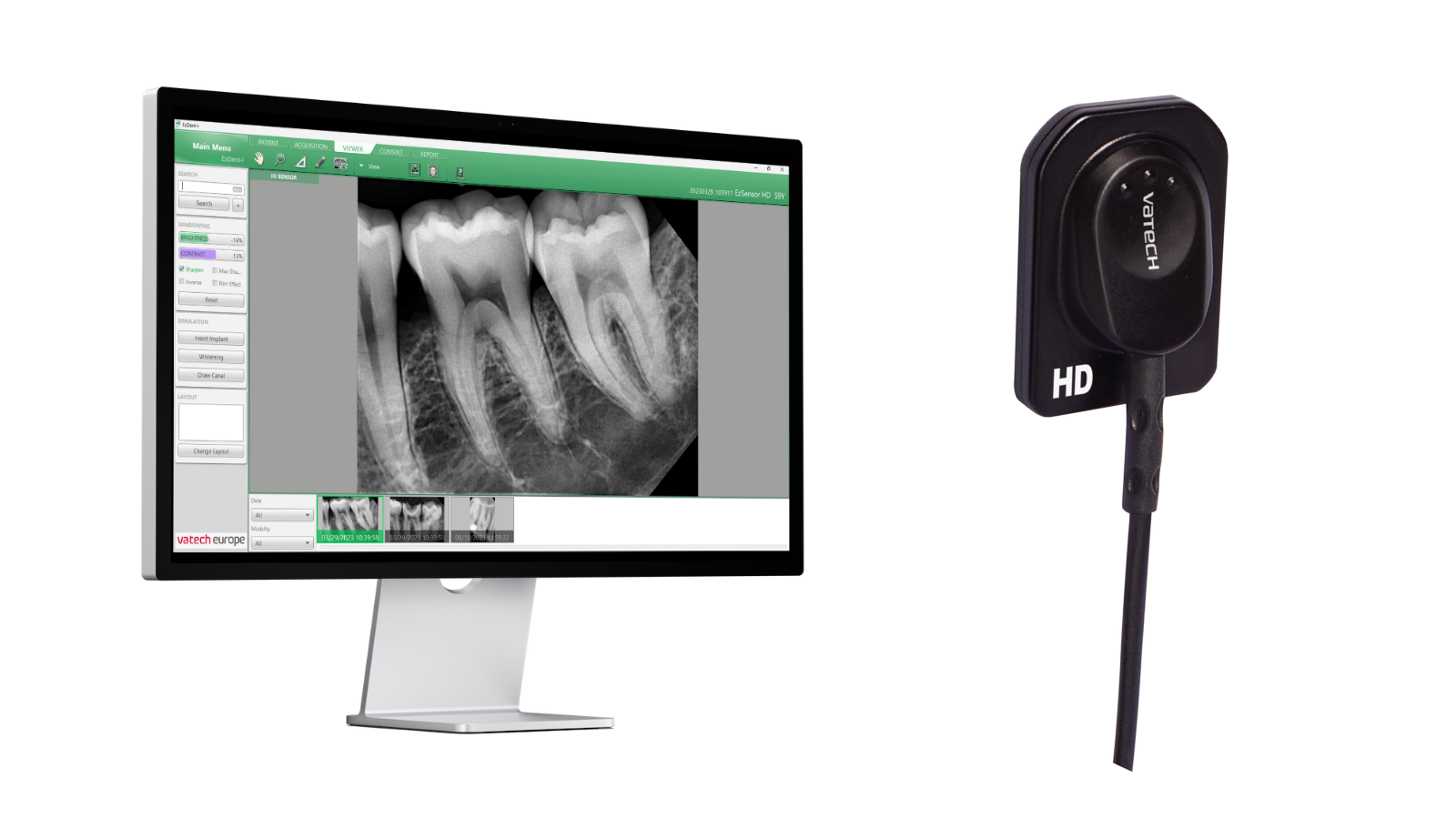

Clear, sharp images — the detail that makes the difference in diagnosis.
Get a demo of the EzSensor HD
No obligation. A VATECH representative will bring it to your clinic.
