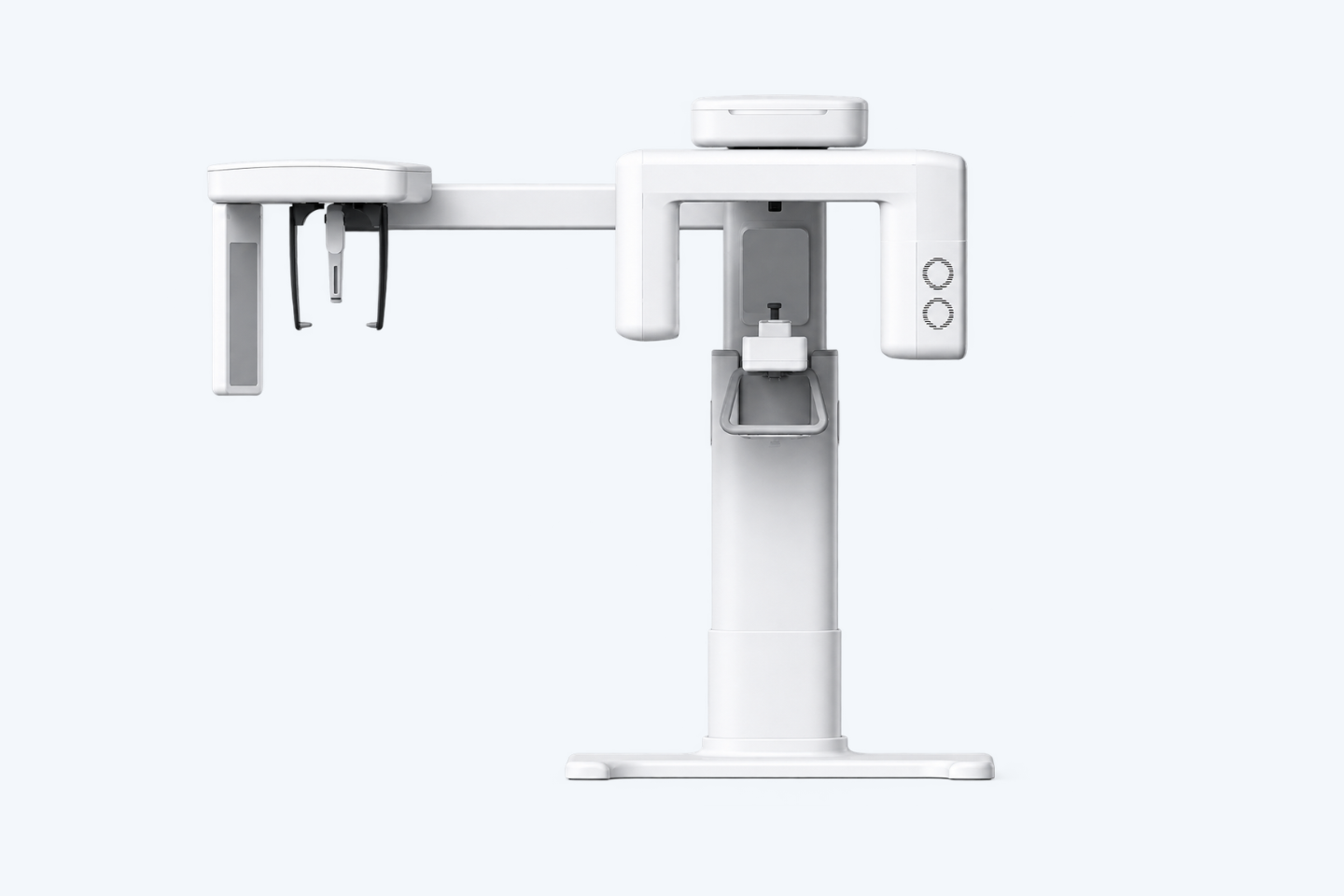

VATECH A9
The advanced imaging solution for accurate dental diagnosis
The VATECH A9 is a 3-in-1 dental imaging system combining panoramic, CBCT and optional cephalometric imaging, delivering precise, high-quality images to improve diagnostic accuracy, treatment planning and patient satisfaction.
Interested in the VATECH A9?
Talk to us about pricing, EMI options and installation — or have it demonstrated in your own clinic.
Take a closer look.
-

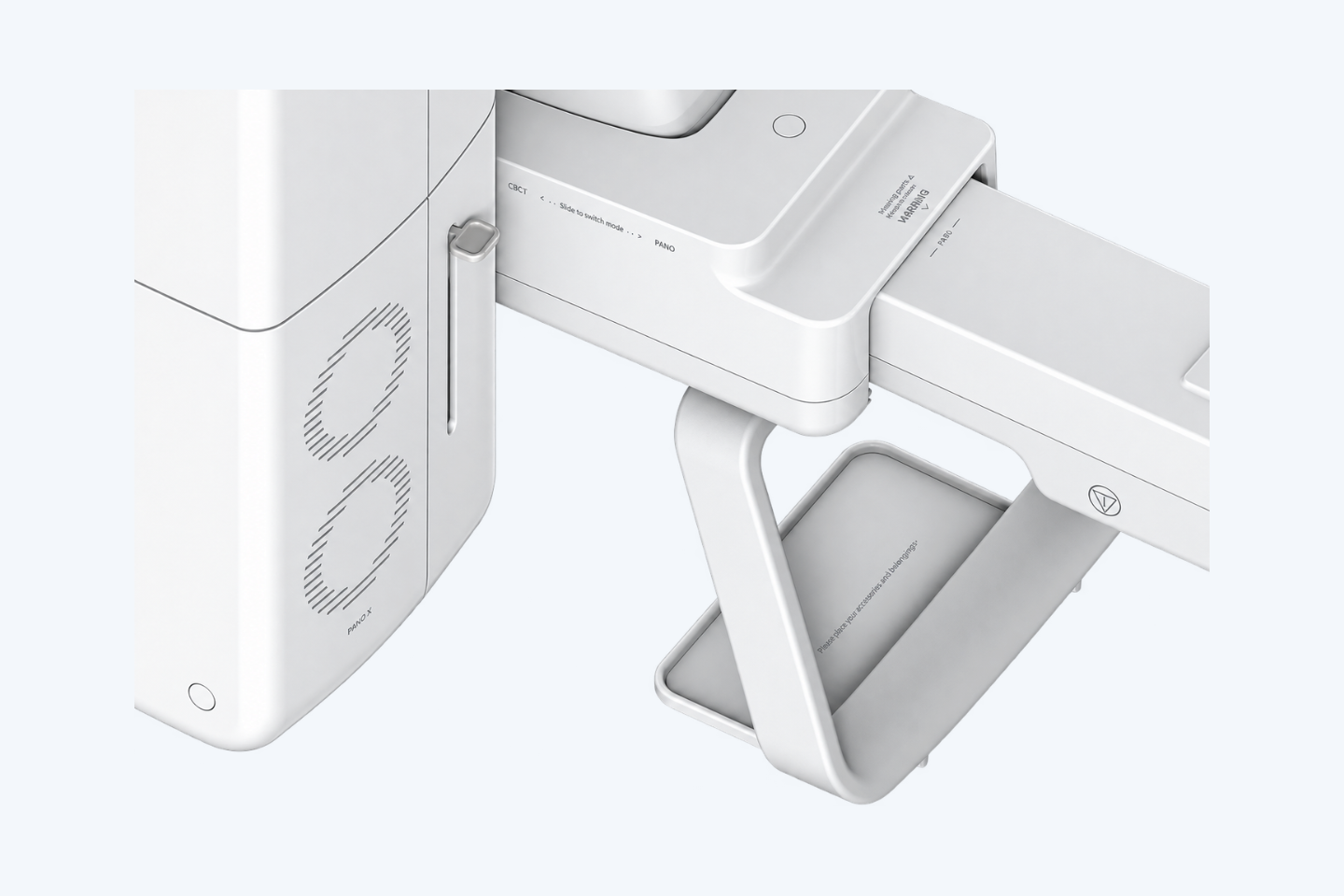

Ultra-Sharp Panoramic Imaging. The Vatech A9 delivers exceptionally clear panoramic images with 5 lp/mm resolution, combining advanced image processing with decades of accumulated dental imaging experience. Every scan captures fine anatomical detail with remarkable sharpness, giving clinicians the confidence to diagnose accurately and plan treatment with precision for improved patient outcomes.
-

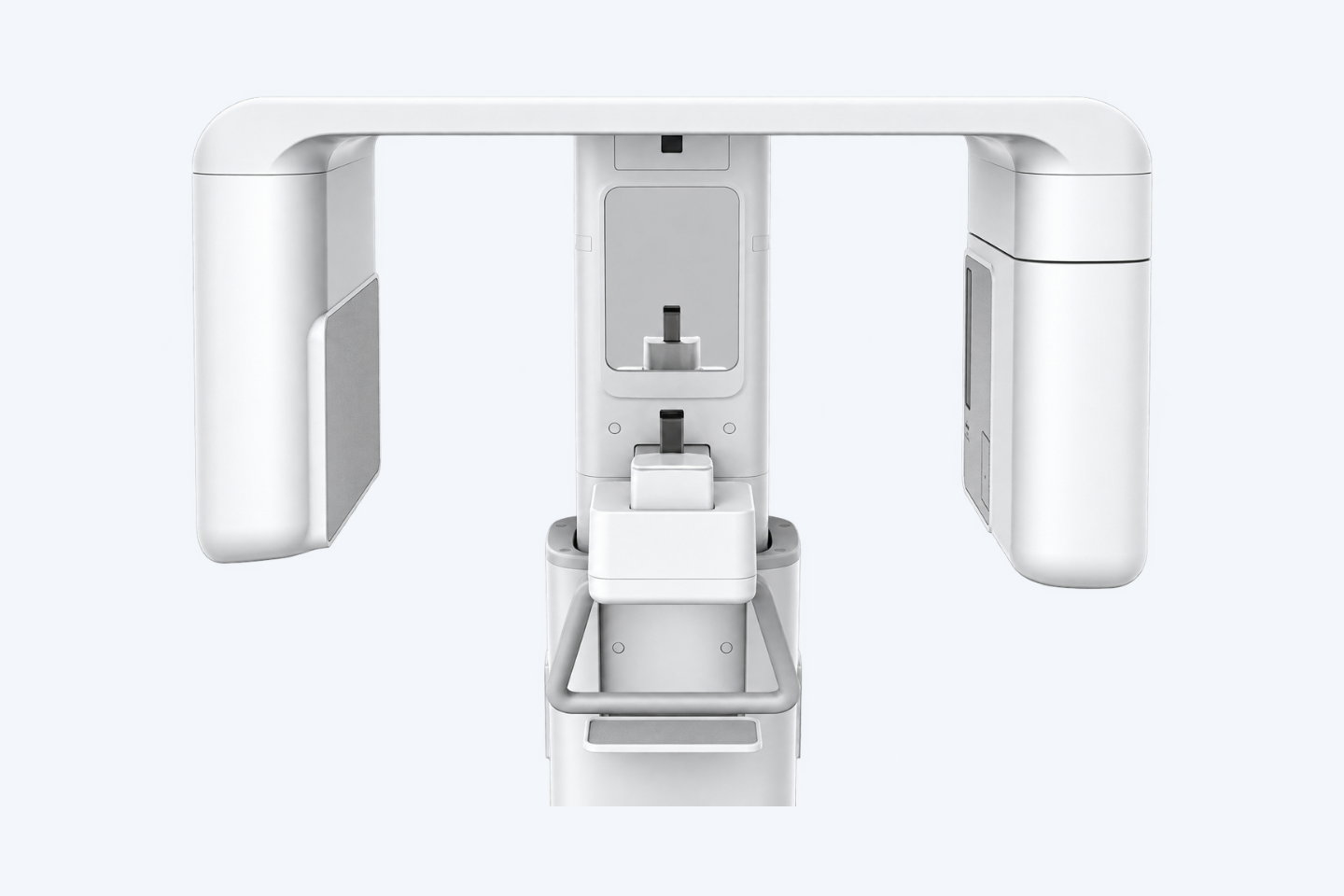

Anatomical 3D FOV. An 8 × 8 cm field of view, extendable to an anatomical 9.3 × 8 cm, captures the full arch in a single 3D scan. This generous coverage supports a wide range of diagnostic and treatment-planning needs, from implant placement to surgical assessment, while keeping patient positioning simple and workflow efficient.
-

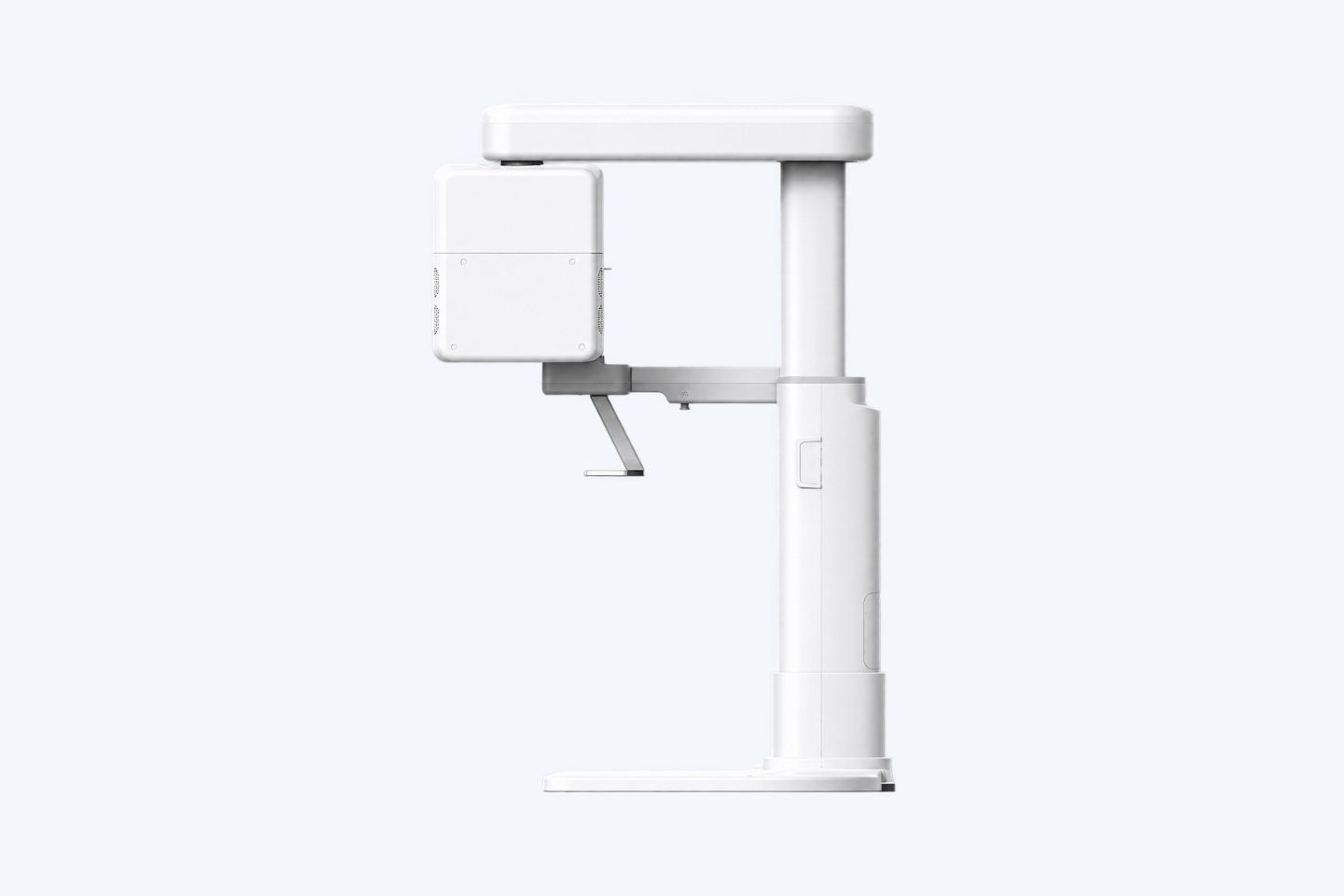

Rapid Ceph Technology. Vatech's new Rapid Ceph represents the next step in cephalometric imaging, minimizing motion artifacts while enabling a faster diagnostic workflow. Patients spend less time in position, and clinicians receive the highest-quality digital cephalometric images, making orthodontic assessment and treatment planning smoother, cleaner and more reliable.
-

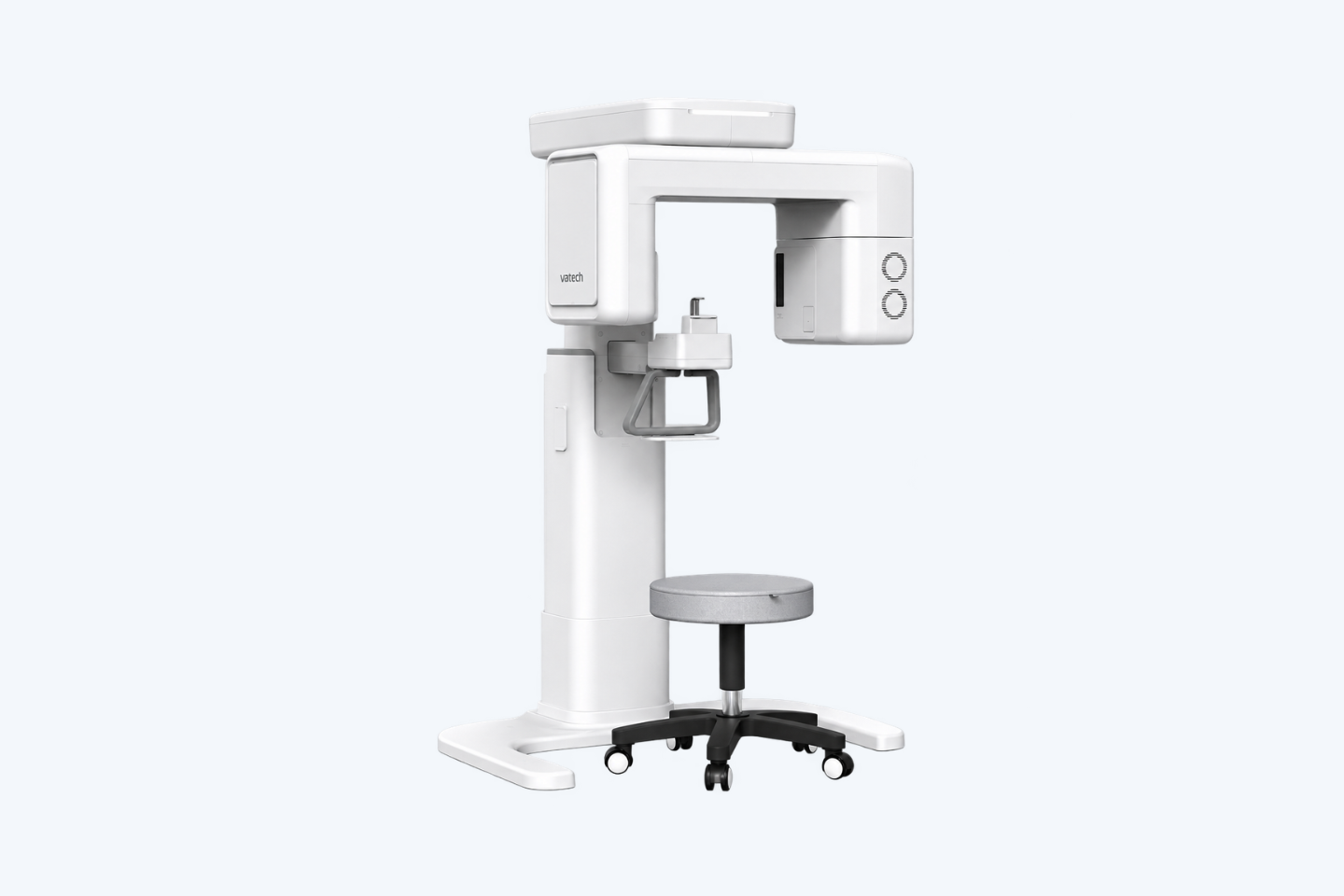

Ez3D-i Software. Powered by a new 3D VR graphics engine, Ez3D-i is the ideal tool for quickly and easily obtaining the correct perspectives needed for accurate, true-to-measurement diagnosis. Its intuitive interface makes cutting-edge 3D imaging accessible to every dentist, streamlining the path from scan to confident clinical decision without a steep learning curve.
-
Integrated Clinical Tools. Ez3D-i supports multiple VR coloring modes, 3-click implant simulation with collision detection and bone density analysis, plus one-click cross-sectioning and canal drawing. A virtual consultation library of over 200 videos helps clinicians explain findings clearly, strengthening case acceptance and building trust with every patient conversation.
VATECH A9 technical details
| Model No | PHT-30CSS |
| Function | CT + Pano + Ceph |
| Focal Spot | 0.5 mm (IEC 60336) |
| CT FOV Size | 8 × 8 cm (anatomical 9.3 × 8 cm) |
| Voxel Size | 0.2 mm / 0.3 mm |
| Panoramic Resolution | 5 lp/mm |
| Scan Time (CT) | 18 sec |
| Scan Time (Pano / Ceph) | 11.9 sec / 14.1 sec |
| Gray Scale | 14 bit |
| Tube Voltage | 60 ~ 99 kV |
| Tube Current | 4 ~ 10 mA |

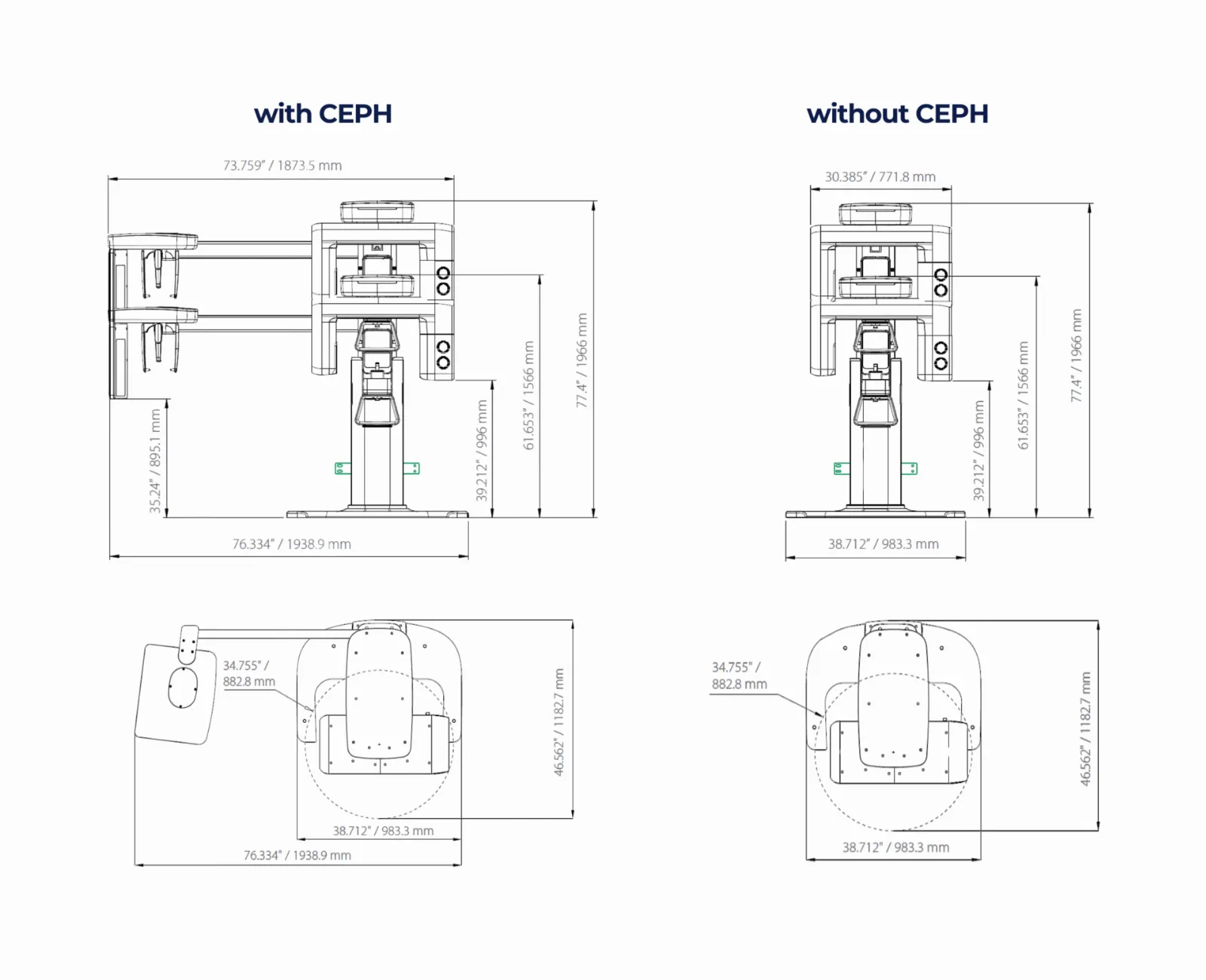

| Dimensions (W × D × H) | 996 × 983.3 × 1966 mm |
| Warranty | 5–10 years |
Opens the official VATECH VATECH A9 catalogue (PDF) in a new tab.
Backed by up to 10 years of warranty
Every install includes on-site training and VATECH123 support. Tell us about your clinic and we'll put together an offer.
A closer look
Clear, sharp images — the detail that makes the difference in diagnosis.
Frequently asked questions
What is VATECH A9 used for?
A 3-in-1 dental imaging system combining panoramic, CBCT and optional cephalometric imaging — used for implant planning, orthodontics, endodontics, oral surgery and general diagnosis.
What is the Field of View (FOV) of VATECH A9?
It offers an 8×8 cm (anatomical 9.3×8 cm) field of view, capturing the full arch in a single scan.
Is VATECH A9 suitable for implant planning?
Yes — it provides high-quality 3D CBCT images to evaluate bone structure, anatomical landmarks and implant placement accurately.
Can it perform panoramic, CBCT and cephalometric imaging?
Yes — it is a versatile 3-in-1 system supporting panoramic, 3D CBCT and optional cephalometric imaging.
