PaX-i Plus
Advanced image solution for accurate dental diagnosis
The PaX-i Plus delivers high-quality panoramic imaging built on VATECH's accumulated dental imaging expertise, improving diagnostic accuracy, treatment planning and patient satisfaction with dedicated sensors for panoramic and cephalometric capture.
Interested in the PaX-i Plus?
Talk to us about pricing, EMI options and installation — or have it demonstrated in your own clinic.
Take a closer look.
-

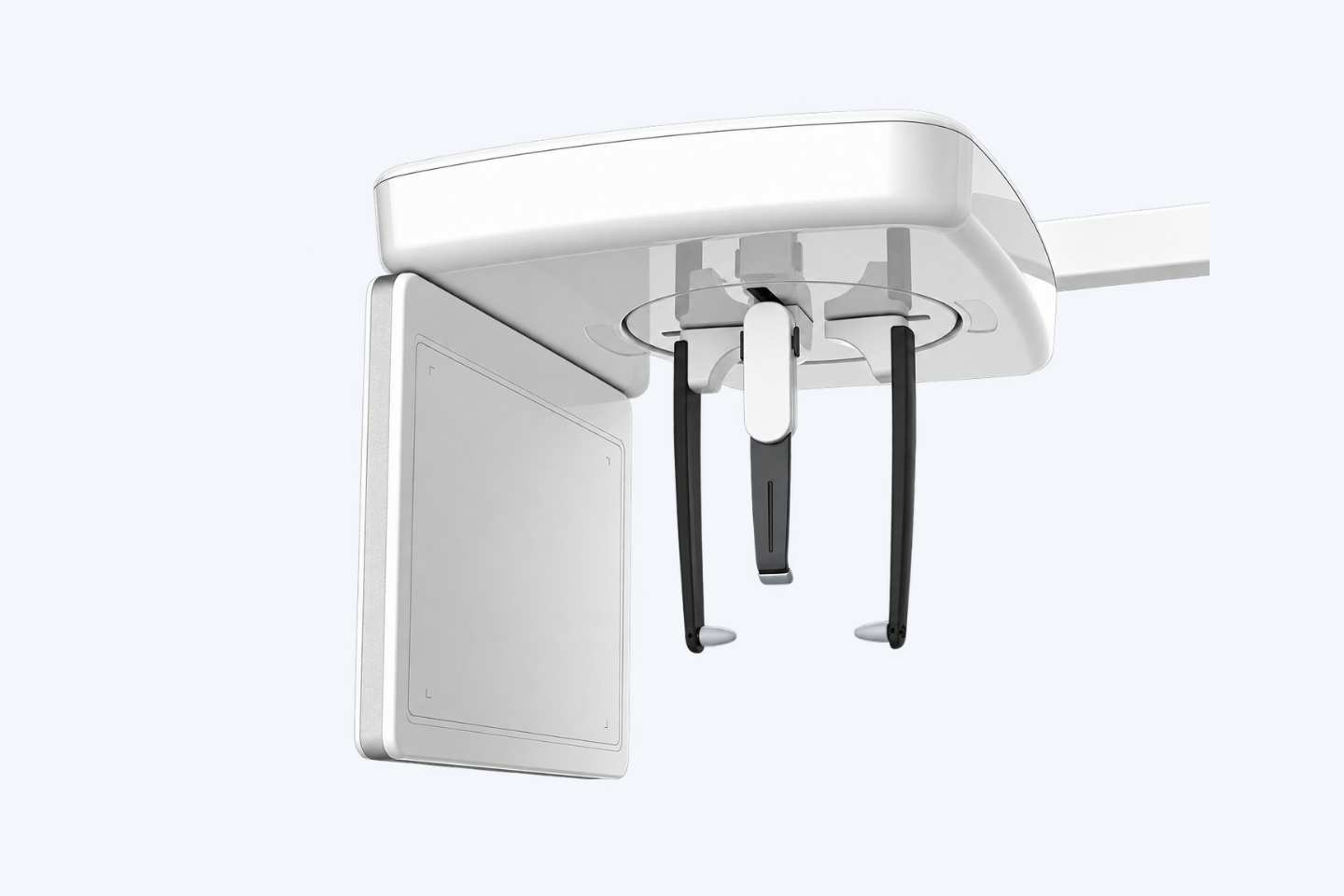

Precise Panoramic Imaging. PaX-i Plus delivers the most precise, high-quality panoramic image through an innovative imaging process built for accurate dental diagnosis. With an actual pano resolution of 5 lp/mm, clinicians can view clear, sharp images with enhanced detail, especially across the dental roots. It has become the new standard of panoramic imaging.
-

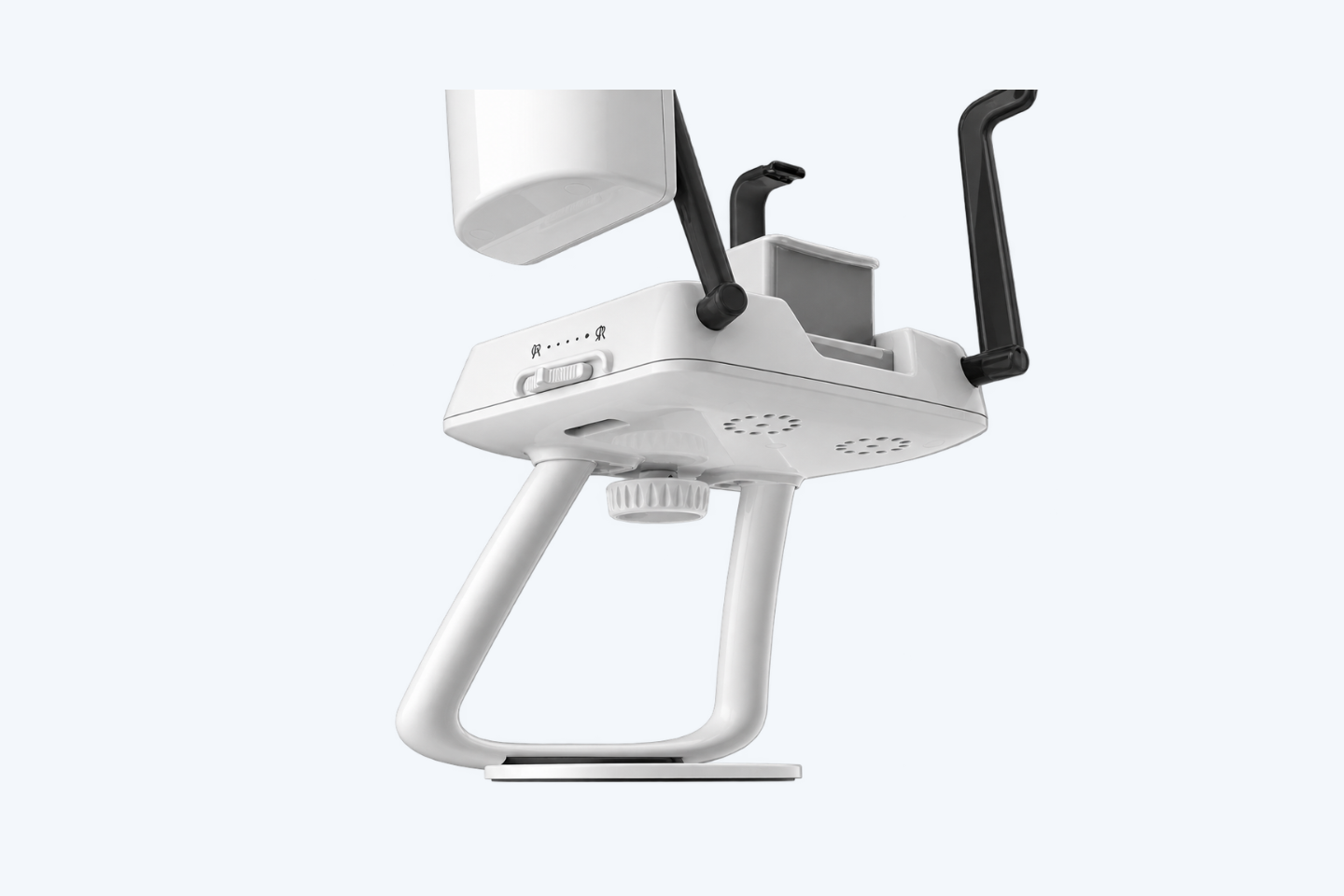

Versatile Capture Modes. PaX-i Plus offers a full range of capture modes to meet every diagnostic need. Choose from standard panoramic with Narrow, Normal, Wide and Child arch options, plus dedicated Bitewing, TMJ and Sinus programs. This flexibility lets your clinic tailor each examination precisely to the patient and the clinical question at hand.
-

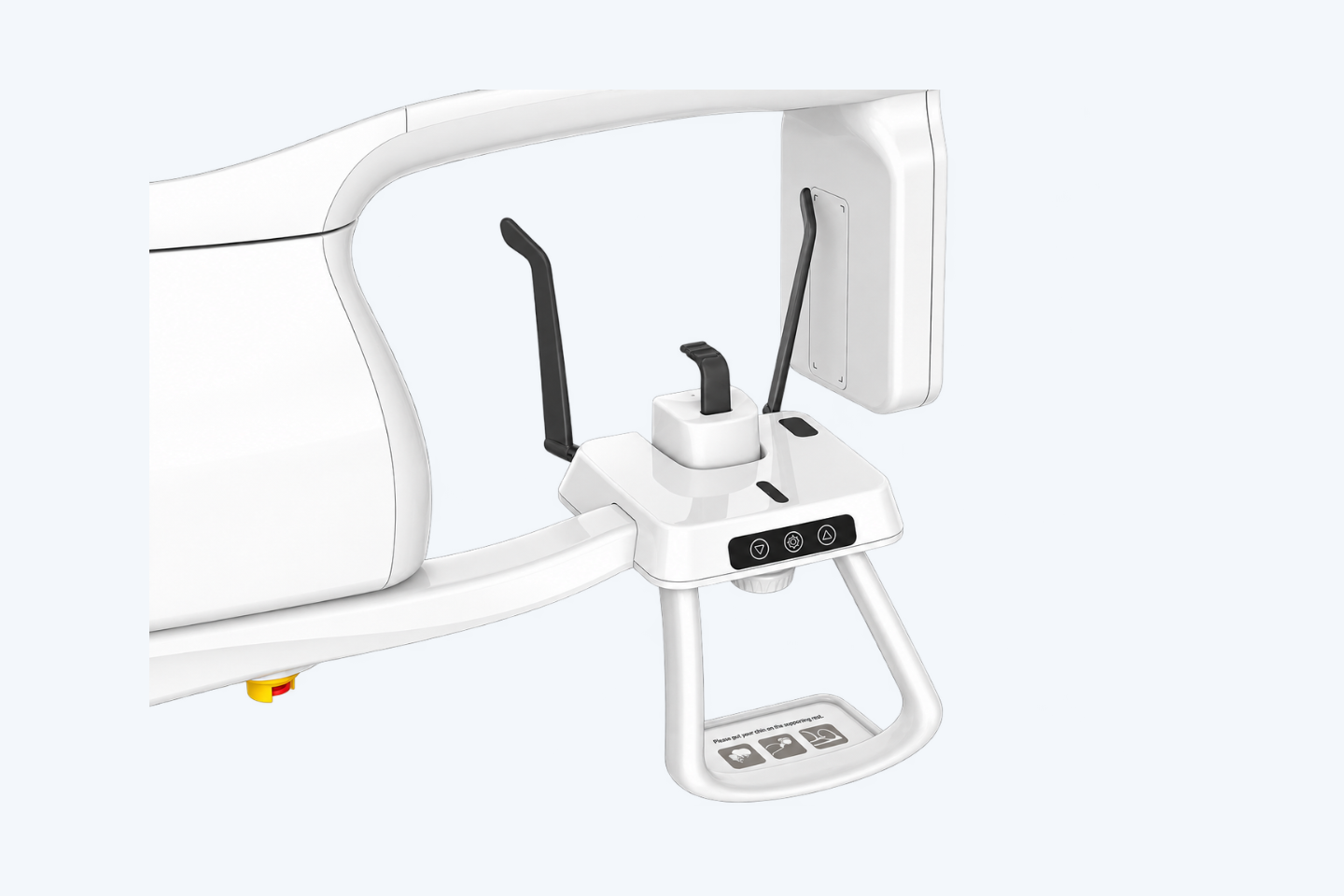

2D Magic Pan. Powered by 2D Magic Pan, a revolutionary and unique technology in panoramic imaging, PaX-i Plus makes the very best of multilayered panoramic images. It takes an in-depth look across the sharpest focal trough to reconstruct the clearest possible view. The result is dependable, detail-rich imaging that supports confident diagnosis.
-

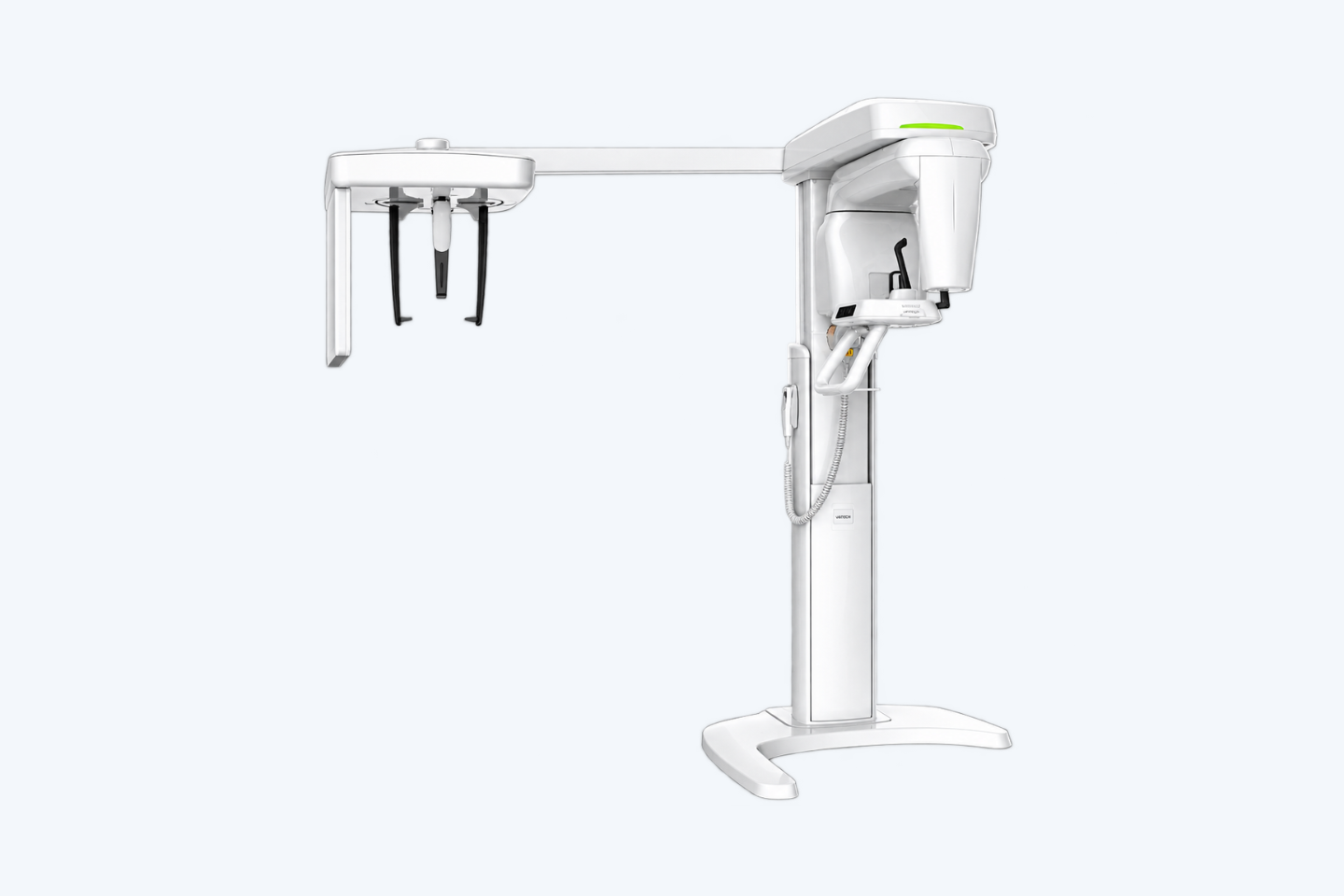

Rapid Ceph Technology. The optional Cephalometric unit uses Rapid Ceph technology to minimize motion artifacts for great clinical care. An exclusively designed sensor captures optimal images with fast exposure times, and two image sizes — Lateral and Full Lateral — let you choose based on your diagnostic needs. Programs include PA, Carpus and SMV.
-
Two Built-in Sensors. PaX-i Plus features two dedicated, embedded sensors — one for Pano and one for Ceph. This design not only captures an optimal image from each sensor but also makes your workflow noticeably faster. Paired with the complete diagnosis and consultation software suite, including EzCodi treatment animations, it streamlines both imaging and patient communication.
PaX-i Plus technical details
| Model | PaX-i Plus (PCH-30CS) |
| Function | Pano + Ceph (optional) |
| Tube Voltage / Current | 60 – 99 kV / 4 – 10 mA |
| Focal Spot | 0.5 mm (IEC 60336) |
| Pano Resolution | 5 lp/mm |
| Rapid Ceph Resolution | 5 lp/mm |
| Image Pixel Size | 100 µm |
| Gray Scale | 14 bit |
| Magnification (Pano / Rapid Ceph) | 1.2 / 1.13 |
| Pano Exposure Time | Fast 7.2 s / Normal 10.1 s / HD 13.5 s |
| Rapid Ceph Exposure Time | 1.9 s / 3.9 s |
| Frequency | 50 / 60 Hz |
| File Size (Pano / Rapid Ceph) | 4–33 MB / 7–16 MB |

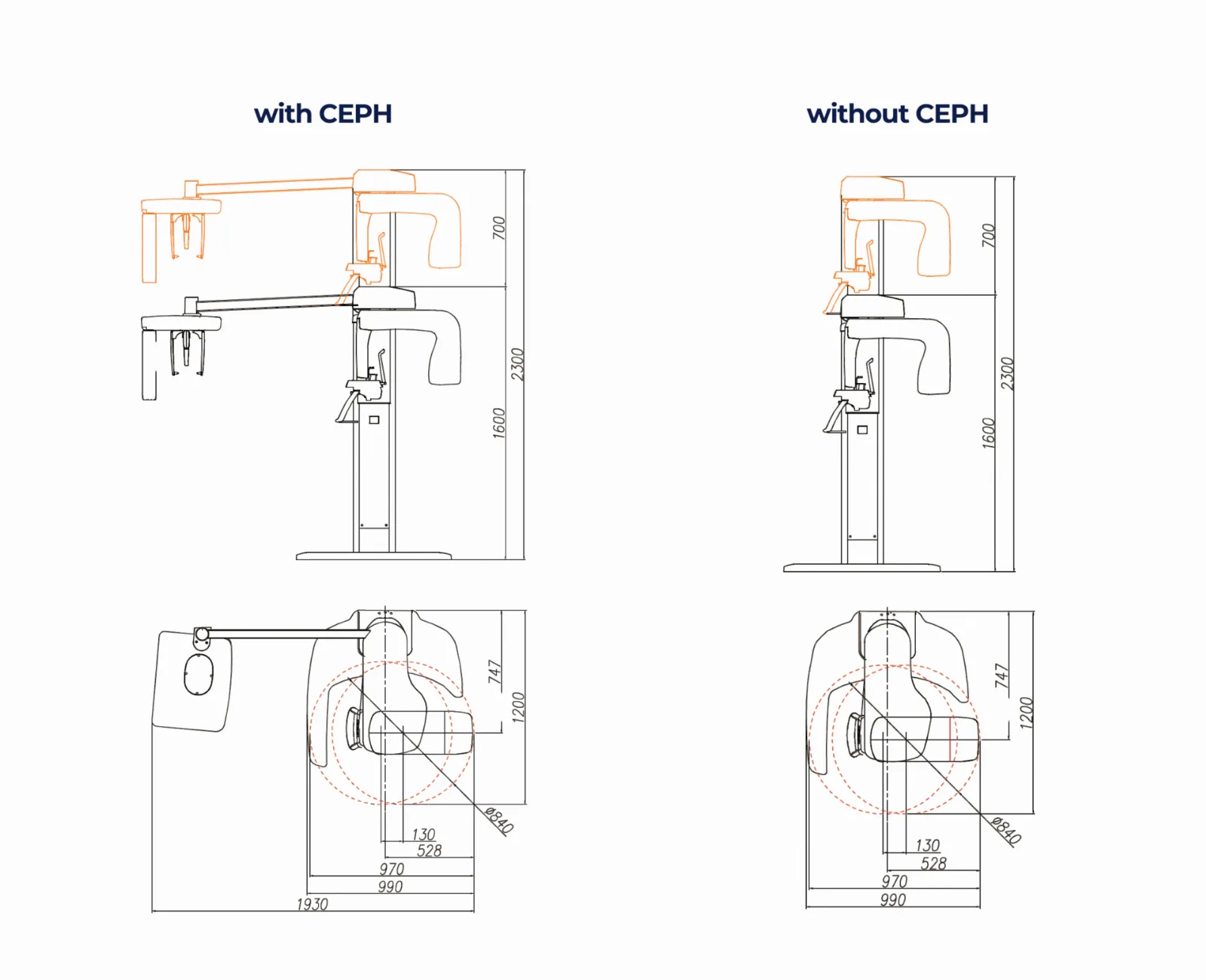

| Dimensions (with Ceph unit) | 1930 (L) × 1200 (W) × 2300 (H) mm |
| Warranty | Up to 5 years |
Opens the official VATECH PaX-i Plus catalogue (PDF) in a new tab.
Backed by up to 5 years of warranty
Every install includes on-site training and VATECH123 support. Tell us about your clinic and we'll put together an offer.
A closer look

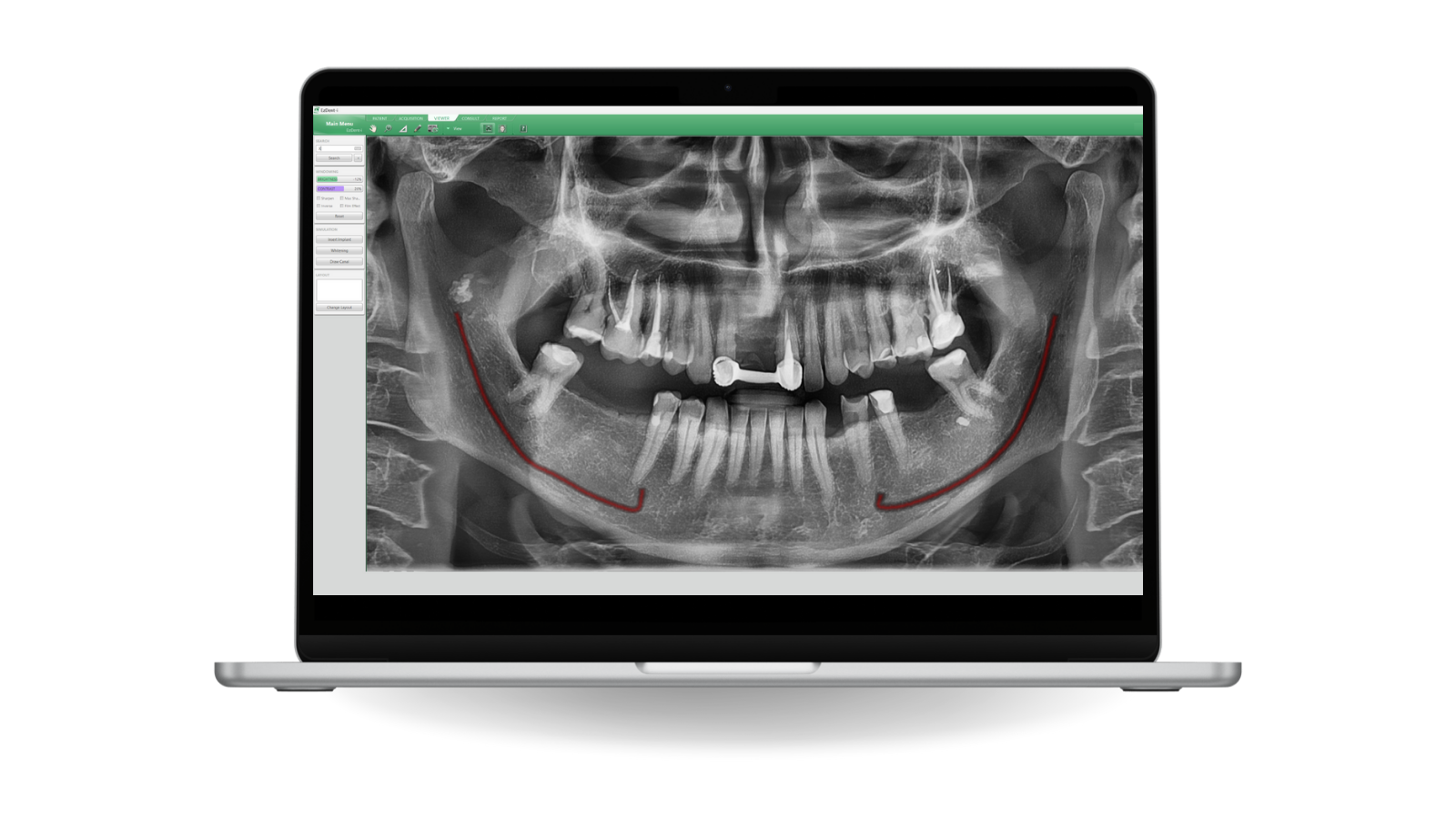

Clear, sharp images — the detail that makes the difference in diagnosis.
Get a demo of the PaX-i Plus
No obligation. A VATECH representative will bring it to your clinic.
